Description

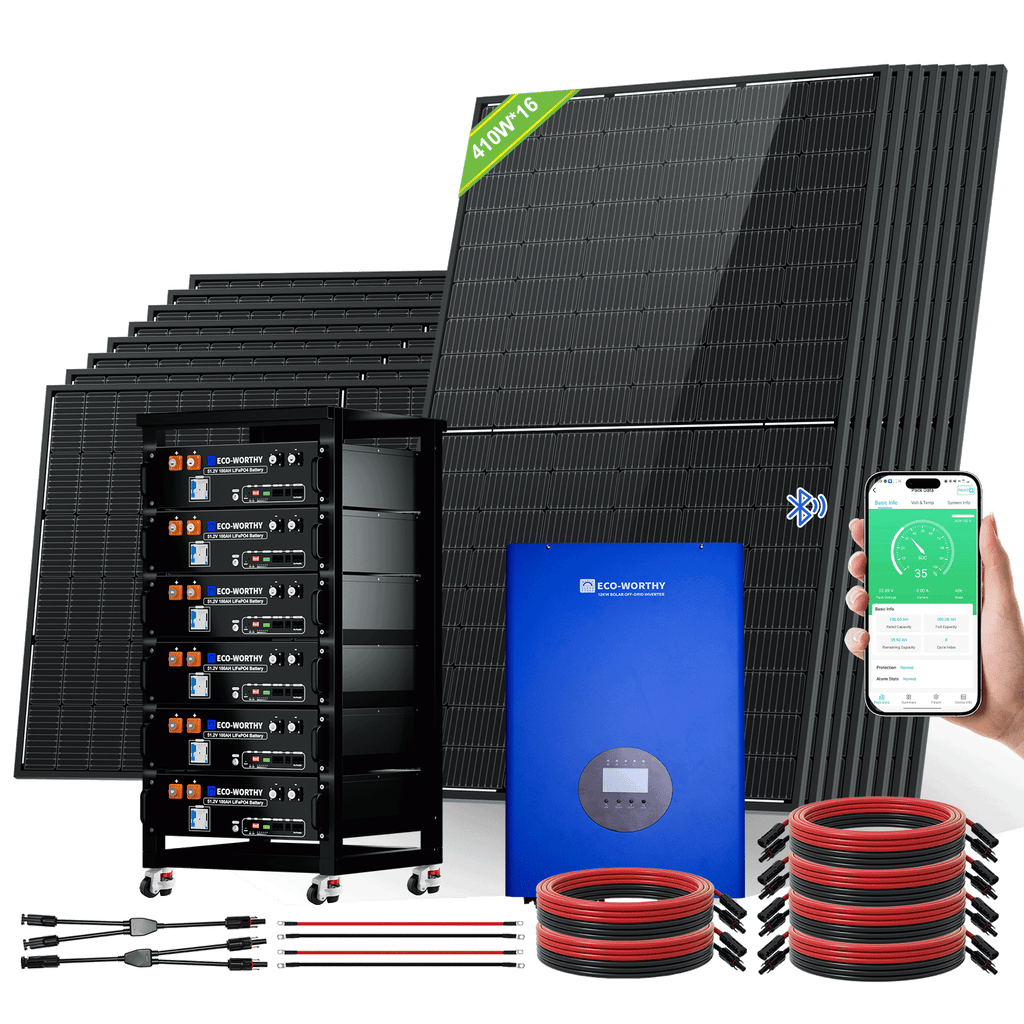

Package Includes

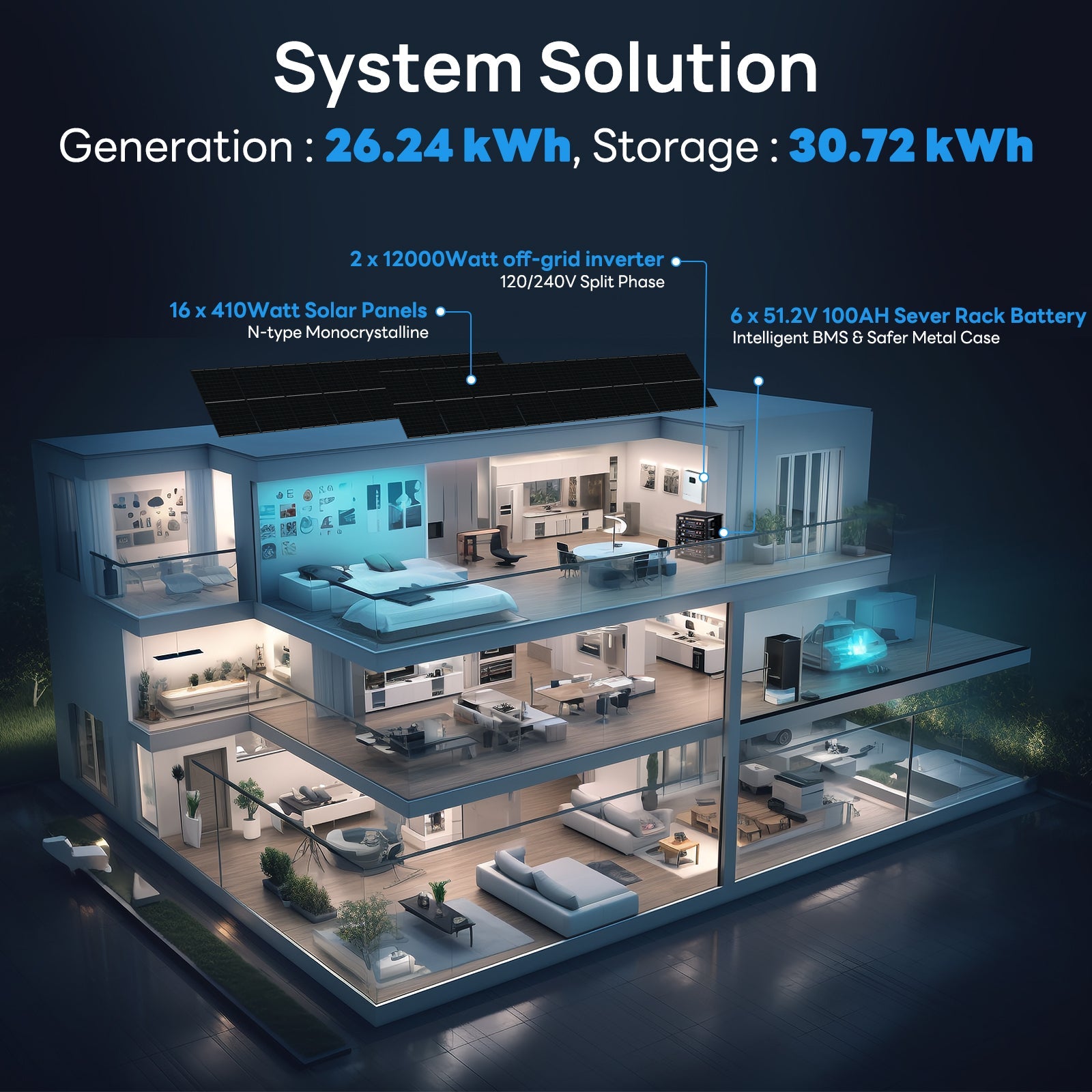

6560W PV&30.72kWh Battery

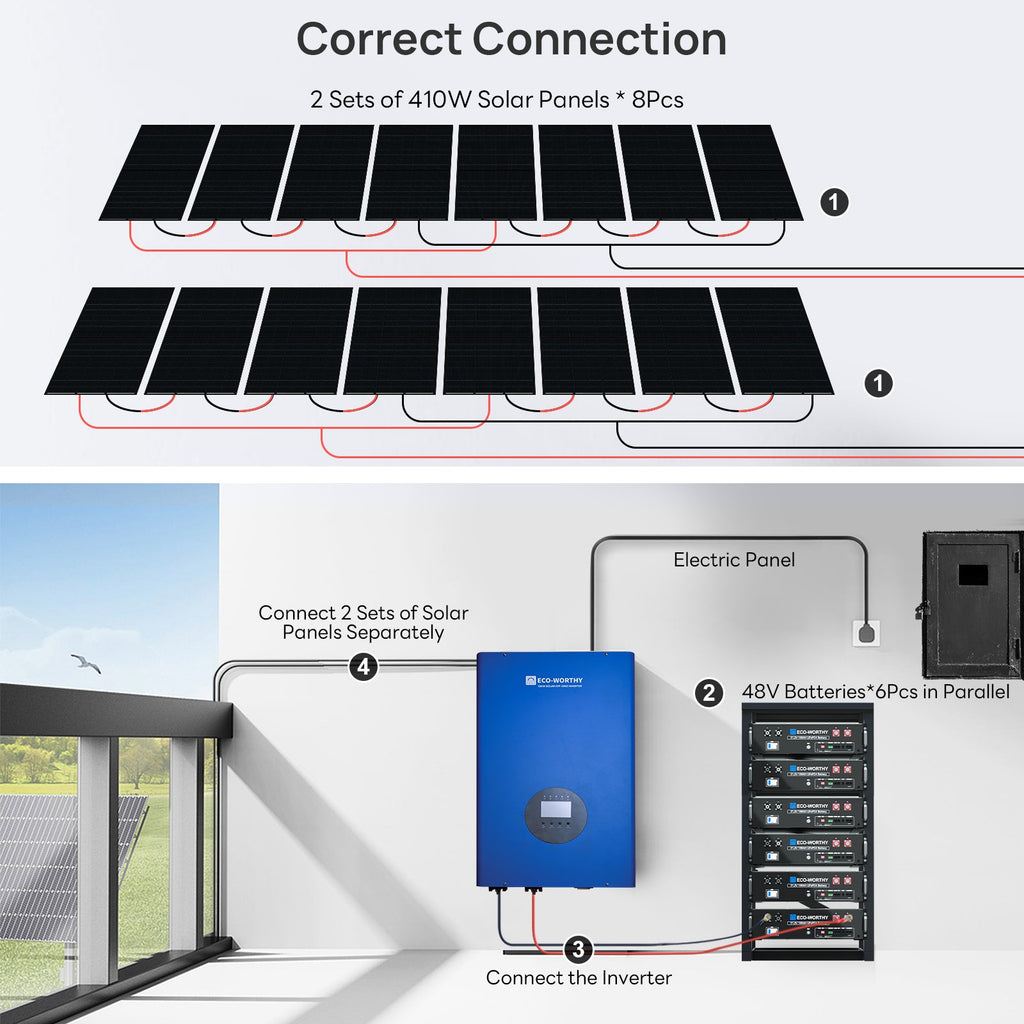

16xECO-WORTHY & 410W SOLAR PANEL-BLACK
1x12000W ALL-IN-ONE INVERTER
2xPV-INVERTER CABLE
4xPV EXTENSION CABLE
6xECO-WORTHY 51.2V 100AH LiFePO4 BATTERY

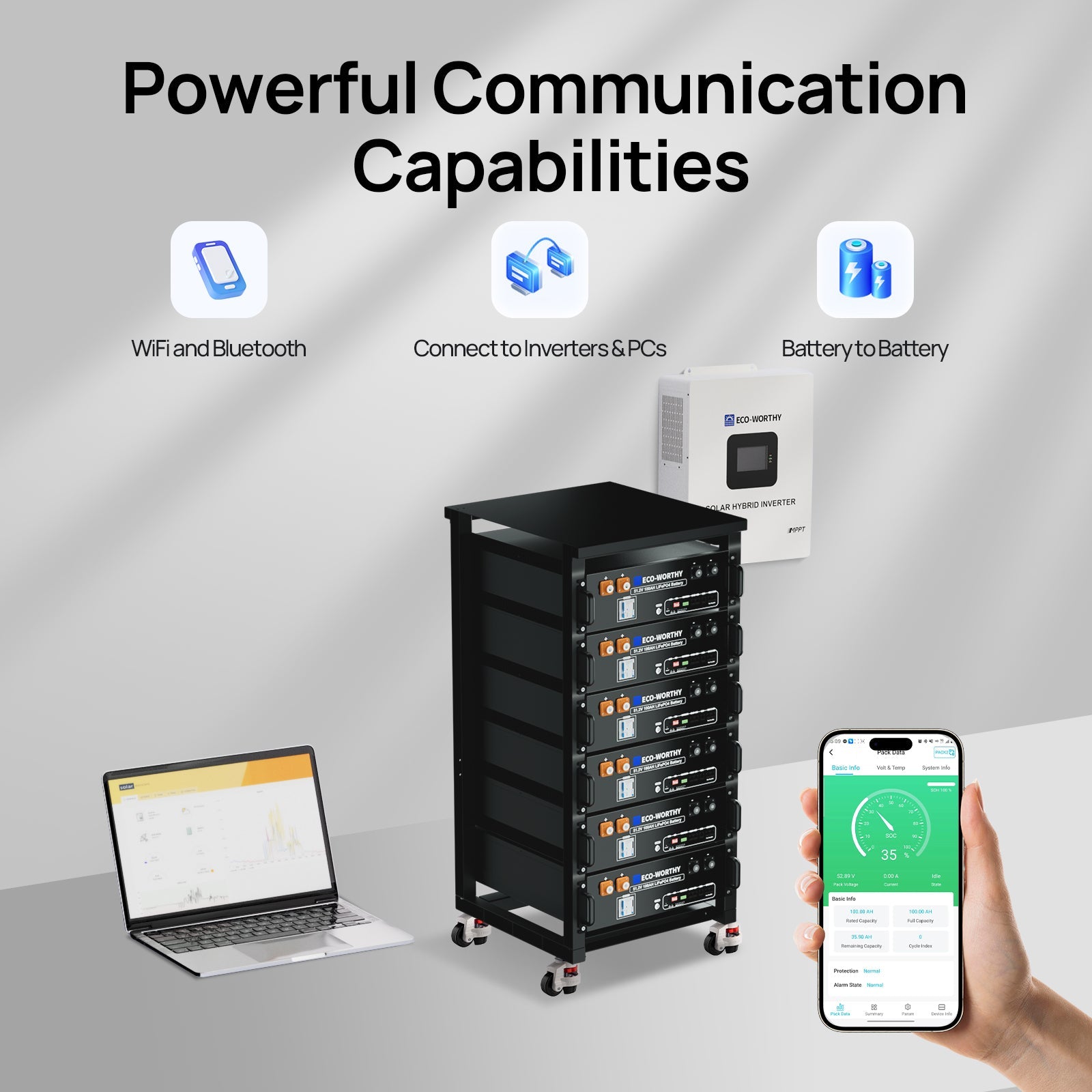

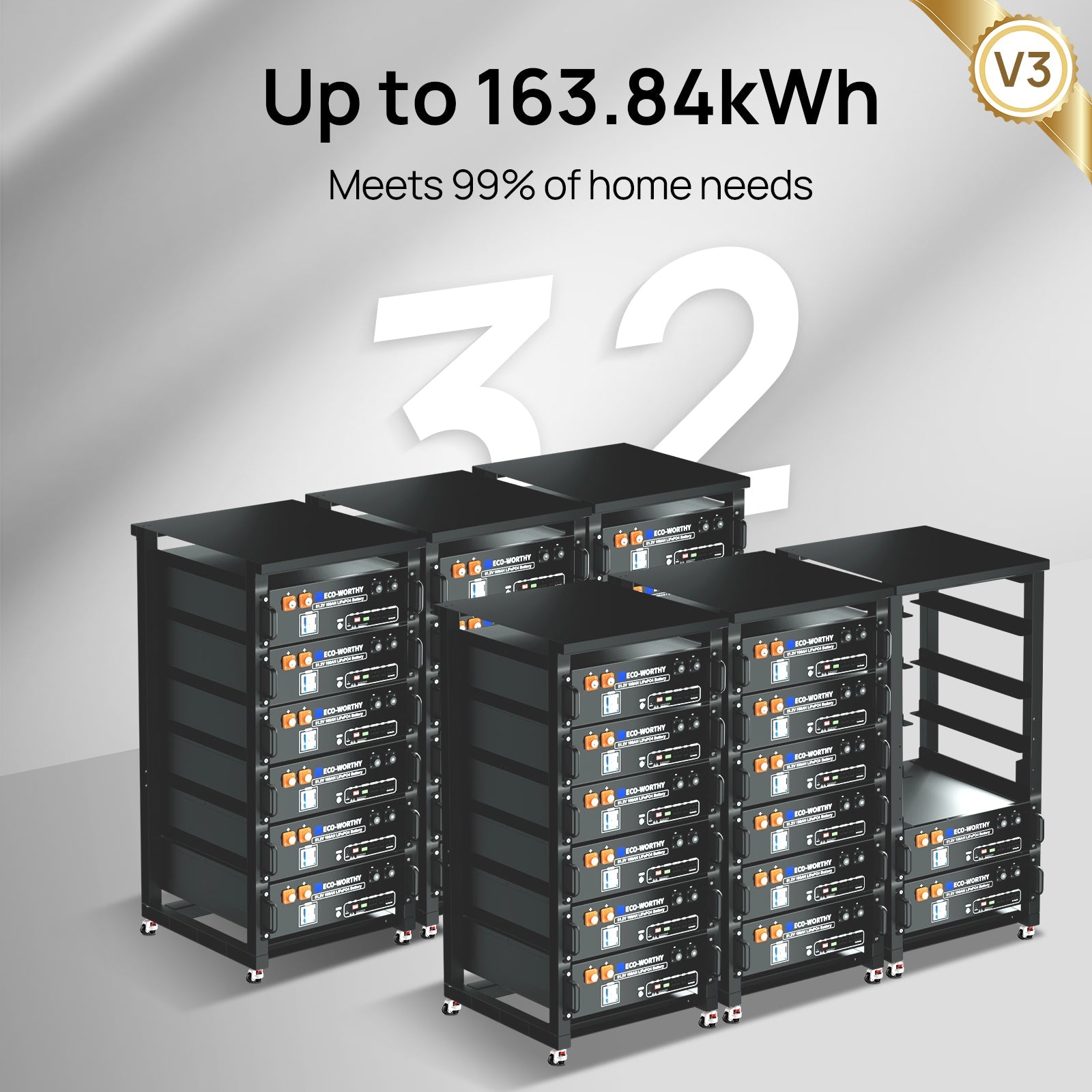

6-LAYER BATTERY RACK

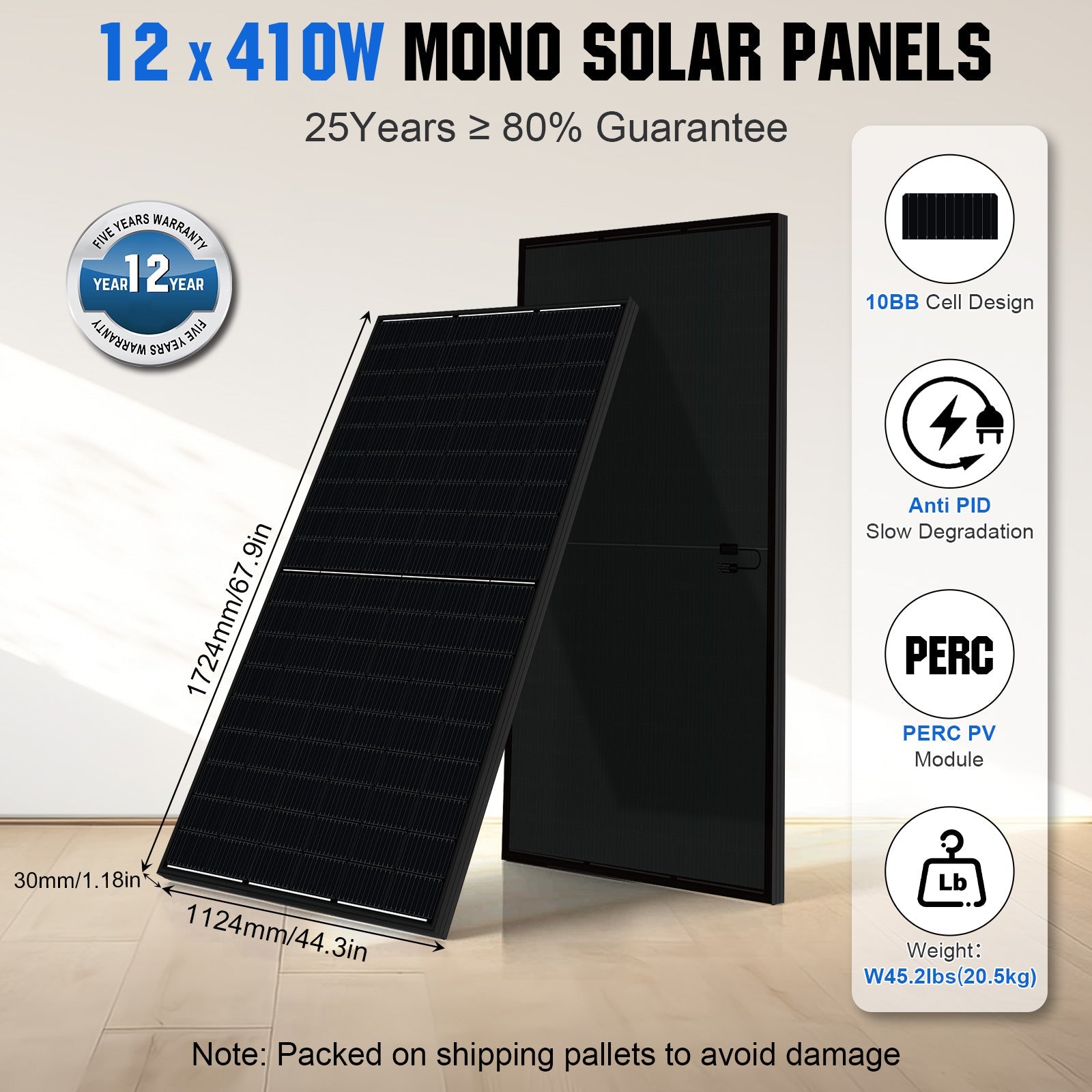

410W Monocrystalline Solar Panel
| Rated Power: 410W | Solar Cell: Mono PERC |
| Maximum/Peak Voltage(Vmp): 31.30V | Open Circuit Voltage(Voc): 37.50V |
| Short circuit current: 13.84A | Maximum current: 13.10A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: 0.05%/℃ |
| Temperate coefficient of Voc: -0.29%/℃ | Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.5 kg |
| Size: 1724x1134x30 mm(With Frame) |

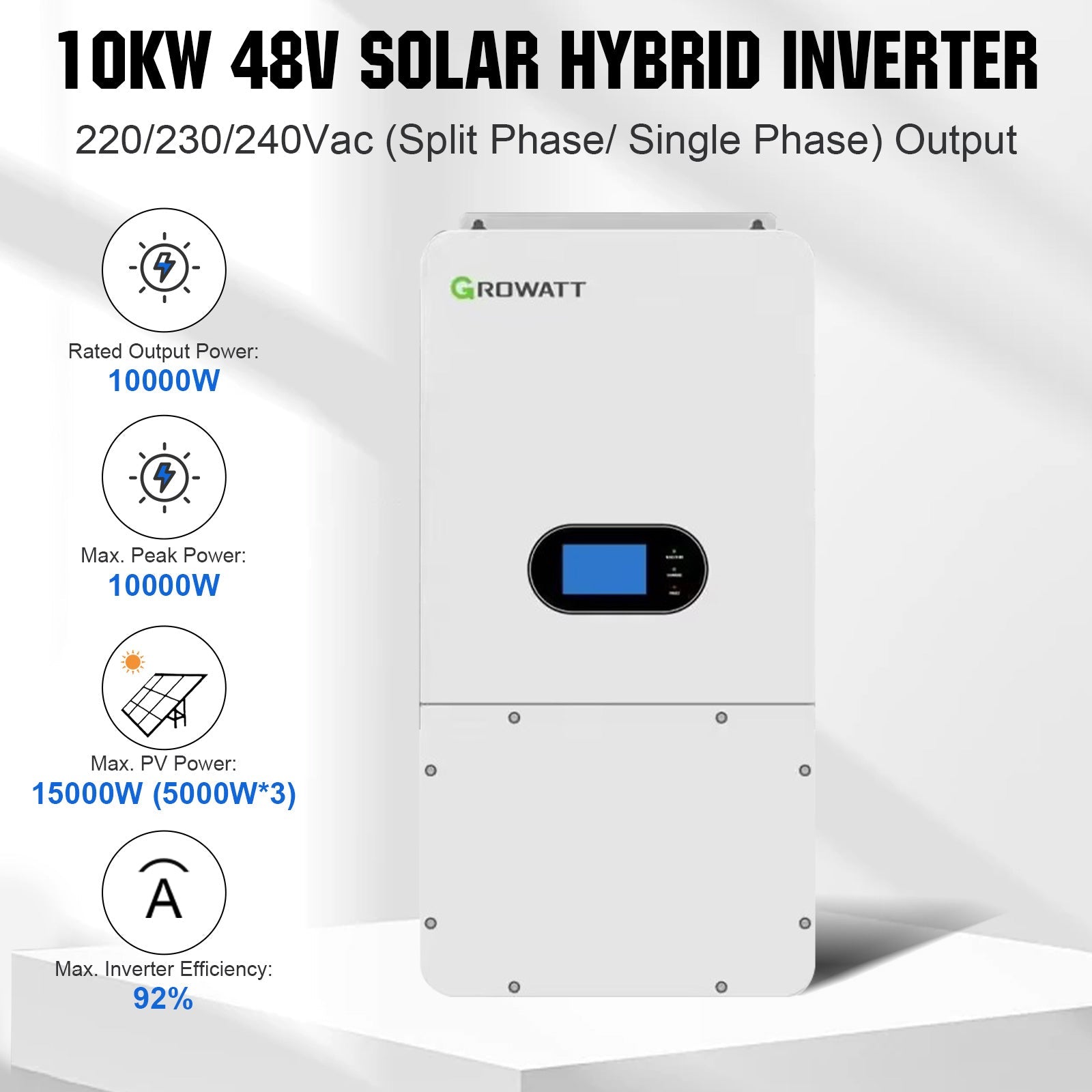

10kW 48V All-in-one Inverter with 200A MPPT
| Solar Charging Mode | |
| PV Charging Current Range: 0-200A | MPPT Voltage Range: 150-450VDC |
| Max Input Power: 15000W | Battery Voltage Range: 40-60VDC |
| Invert Mode | |
| Output Waveform: Pure Sine Wave | Rated Output Power: 10000W |
| Rated Output: 120VAC/240VAC 50Hz/60Hz | Rated Battery Input Voltage: 48V |
| Peak Power: 20000W | |
| AC/Grid Charging Mode | |
| Rated Input: 90VAC-140VAC 50Hz/60Hz(auto detect) | Max Charging Discharging Currrent:200A |

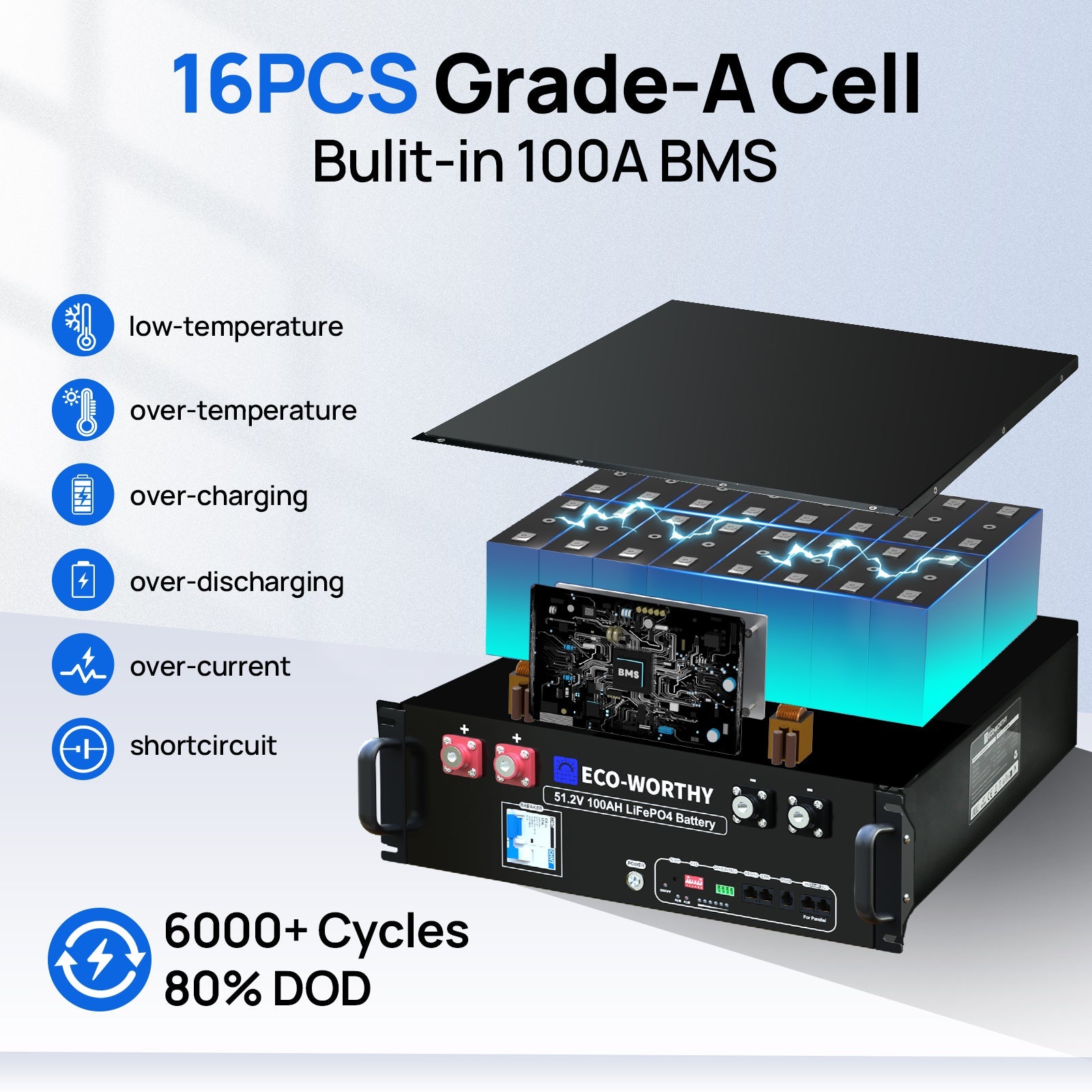

48V 100Ah LiFePO4 Lithium Battery
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Battery Voltage: 51.2V | Maximum Charging Current: 100A |
| Maximum Discharging Current: 100A | Max Charge Voltage: 58.4V |
| Discharge Cut-Off Voltage: 10V | Operating Temperature: -4°F to 140°F |
| Cycle Life: ≥4000 at 50% DoD (depth of discharge) | Size: 22.55*17.13*5.63inch |
| Weight: 97 lbs |
