Description
Package Includes:
5KW AIO Inverter | 5.12kWh Lithium Battery
1 x 48v 100ah Serve Rack Lithium Battery
1 x 5000W Hybrid Inverter
1 Pairs Battery-to-Inverter Connection Cable
1 Pairs Battery Parallel Cables
5KW AIO Inverter | 10.24kWh Lithium Battery
2 x 48v 100ah Serve Rack Lithium Battery
1 x 5000W Hybrid Inverter
1 Pairs Battery-to-Inverter Connection Cable
2 Pairs Battery Parallel Cables
51.2V 100AH SERVE RACK LITHIUM BATTERY
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
| Screw size: M8 | Battery Size: 22.55*17.13*5.63inch |
| Battery Weight: 97 lbs |

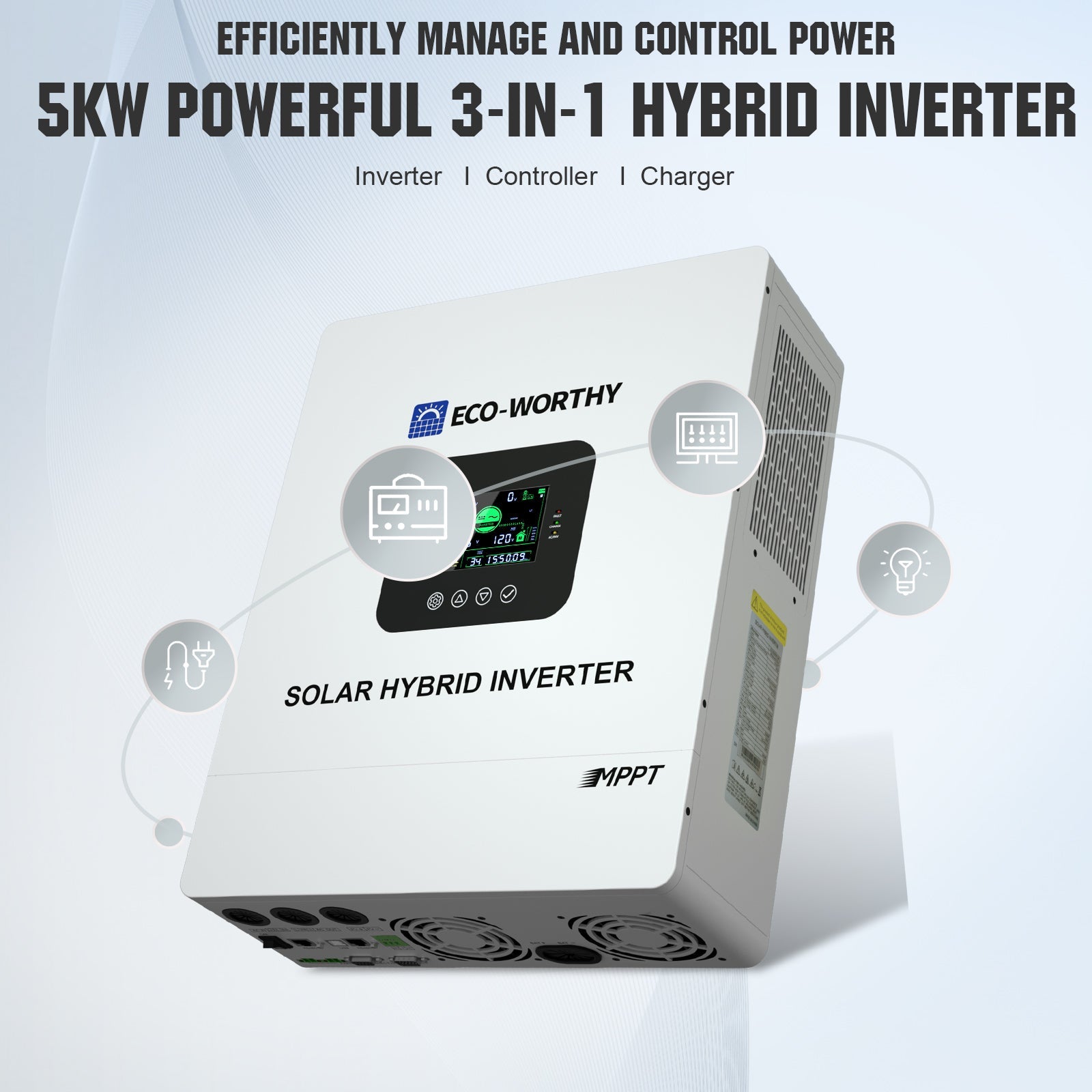

5000W HYBIRD INVERTER PARAMETER
| AC Output Rated Porwer | 5000VA/5000W |
| AC Output Voltage | 120Vac±5% |
| AC Output Rated Current | 41.7A |
| AC Intput Voltage Range |
90~140Vac |
| ACIntput Frequency |
50Hz/60Hz |
| AC Intput Max.AC Charge Current |
40A |
| PV Output Max.Power |
5000W |
| PV Outpu Max.Charge Current |
100A |
| PV Intput Max.Power |
5000W |
| PVIntput Max.Open Voltage |
500V |
