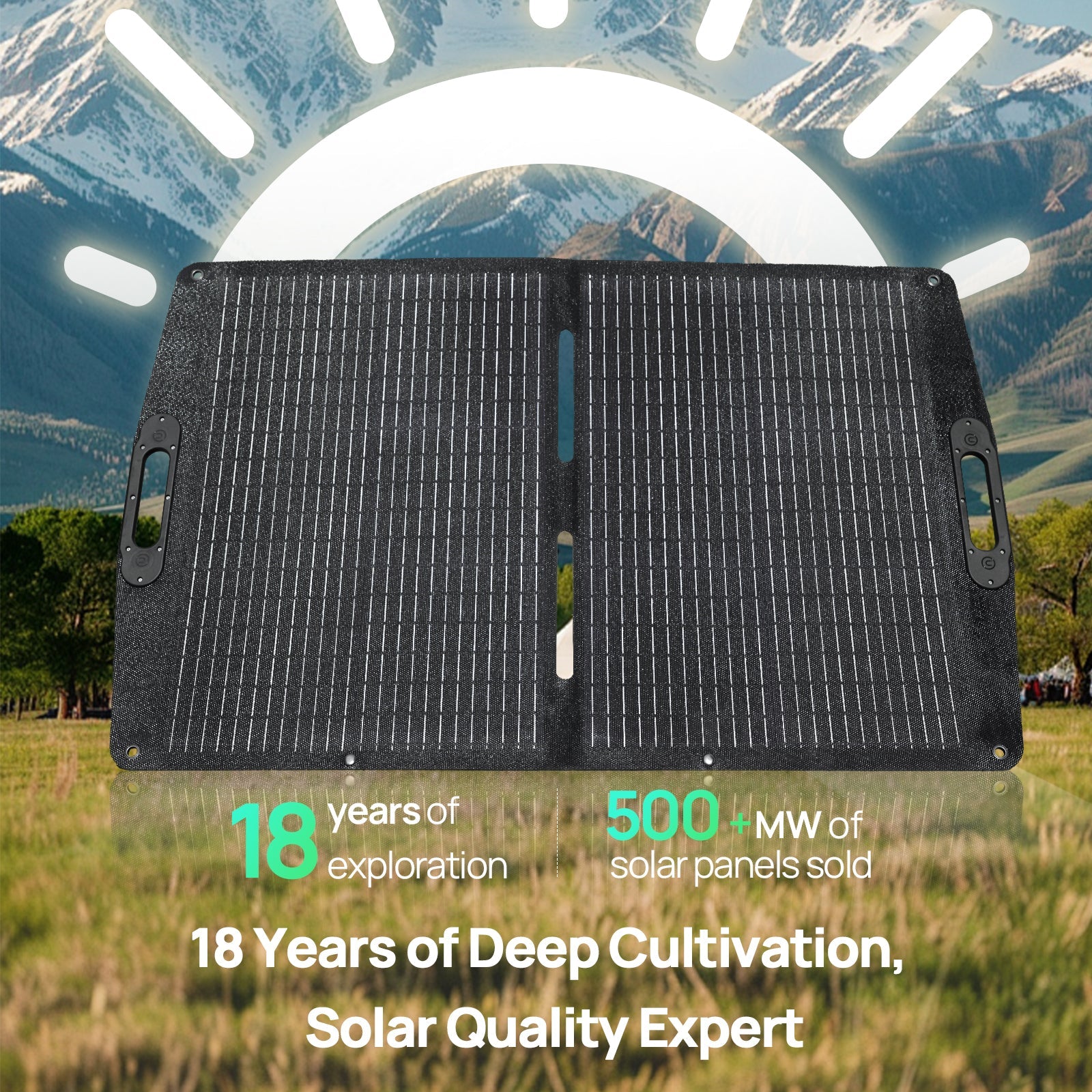

Description
|
Module Type
: 210 |
Maximum Power - Pmax(W):
100W±3%
|
|
Maximum Power Voltage - Vmp(V):19.4
|
Maximum Power Current - Imp(A):
5.16
|
|
Open Circuit Voltage - Voc(V):
23.3
|
Short Circuit Current - Isc(A):
5.47
|
|

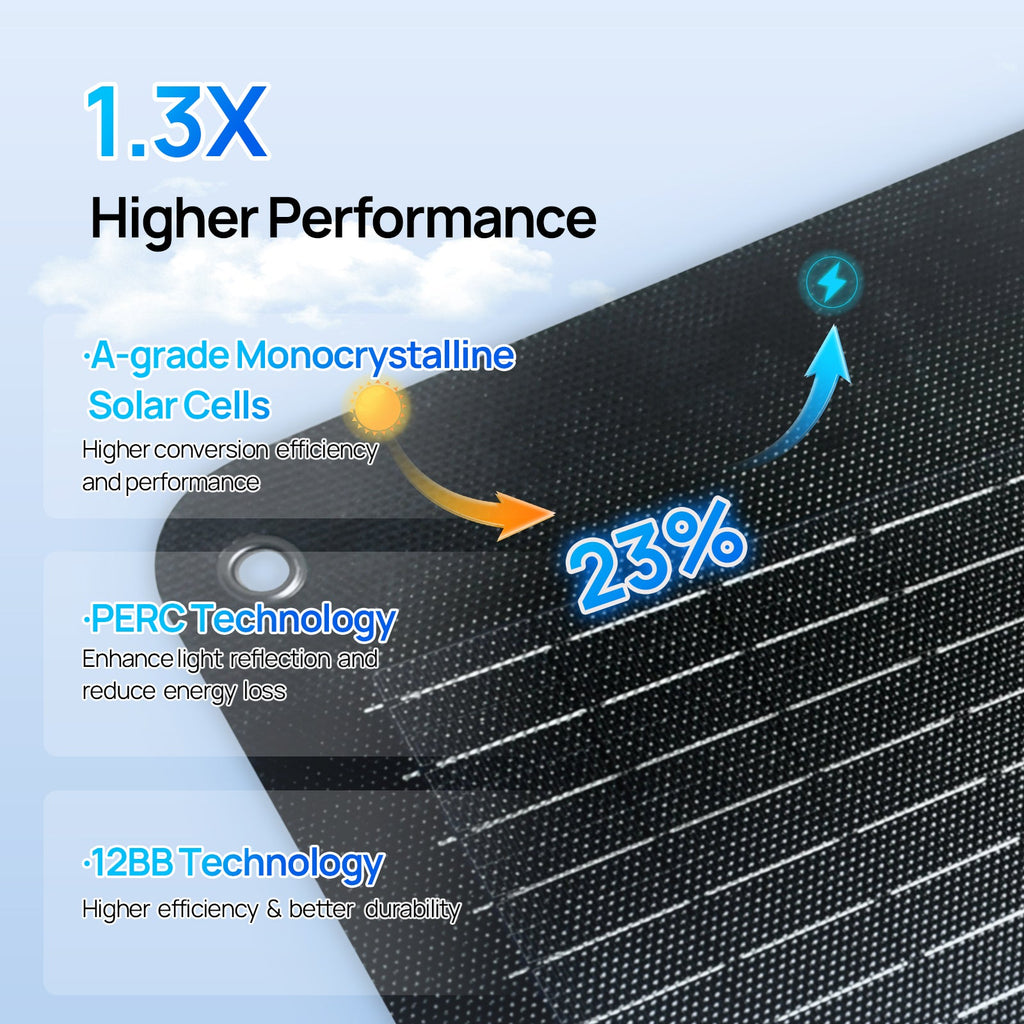

Module Efficiency STC(%):
23%
|
Testing Condition(STC):
All technical data at STC: AM=1.5
Irradiance=1000w/m² Tc=25℃
|
|

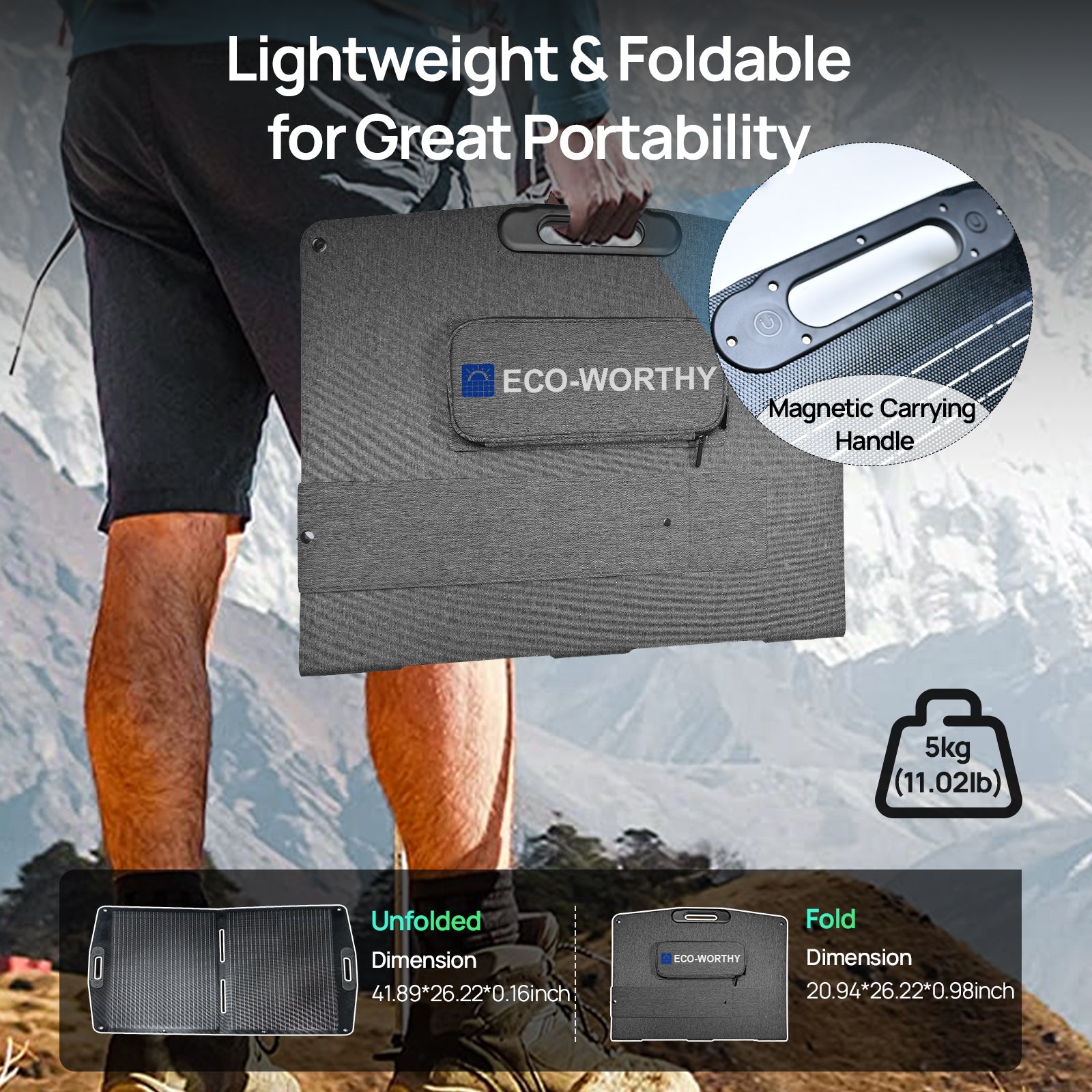

Dimension（Unfolded）:
106.4*66.6*0.4cm/
41.89*26.22*0.16inch
|
Dimension(Folded):
53.2*66.6*2.5cm/
20.94*26.22*0.98inch
|
|

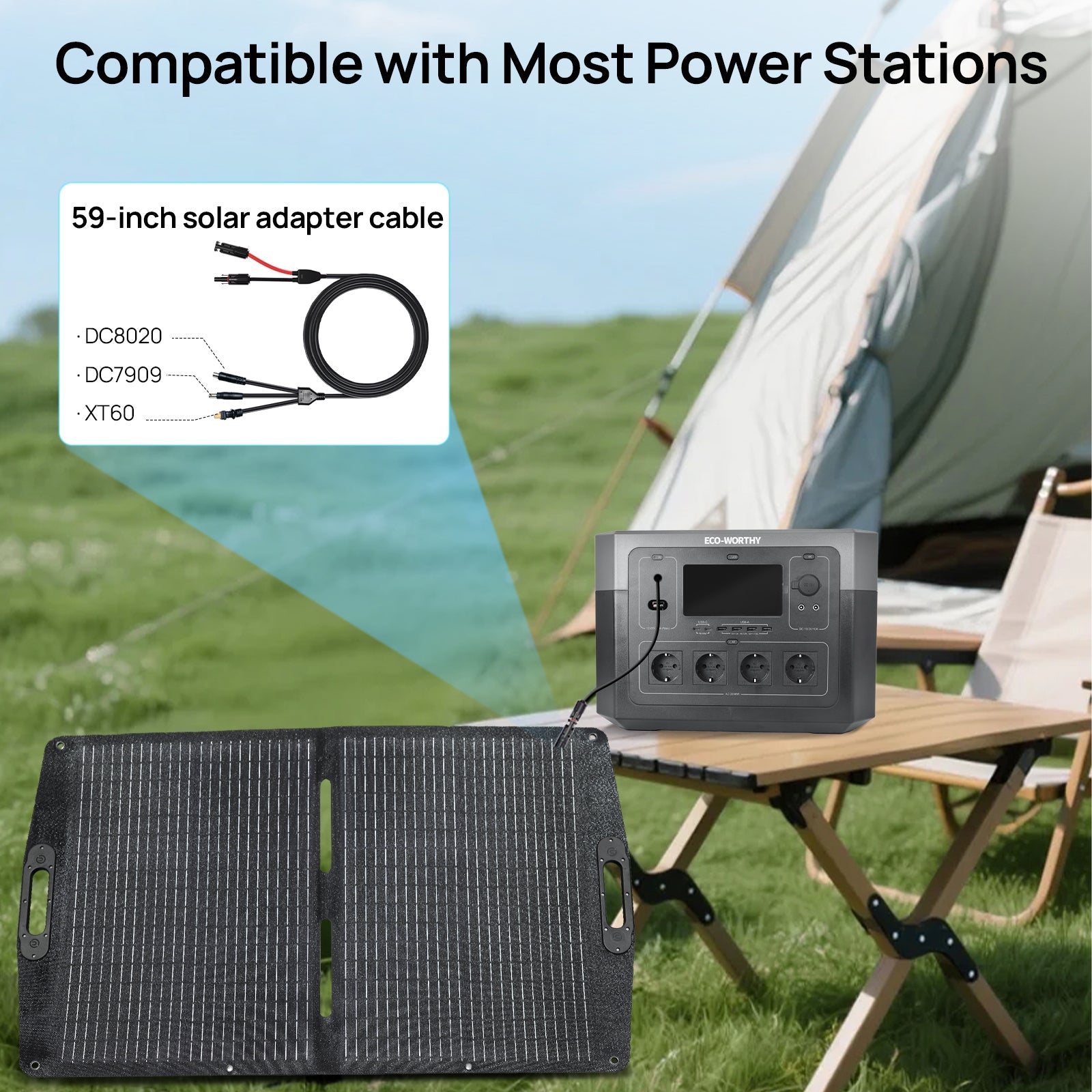

Solar panel cable:
1.5 meters, MC4 to DC8020,DC7909,XT60
|
