Description
Package Includes:

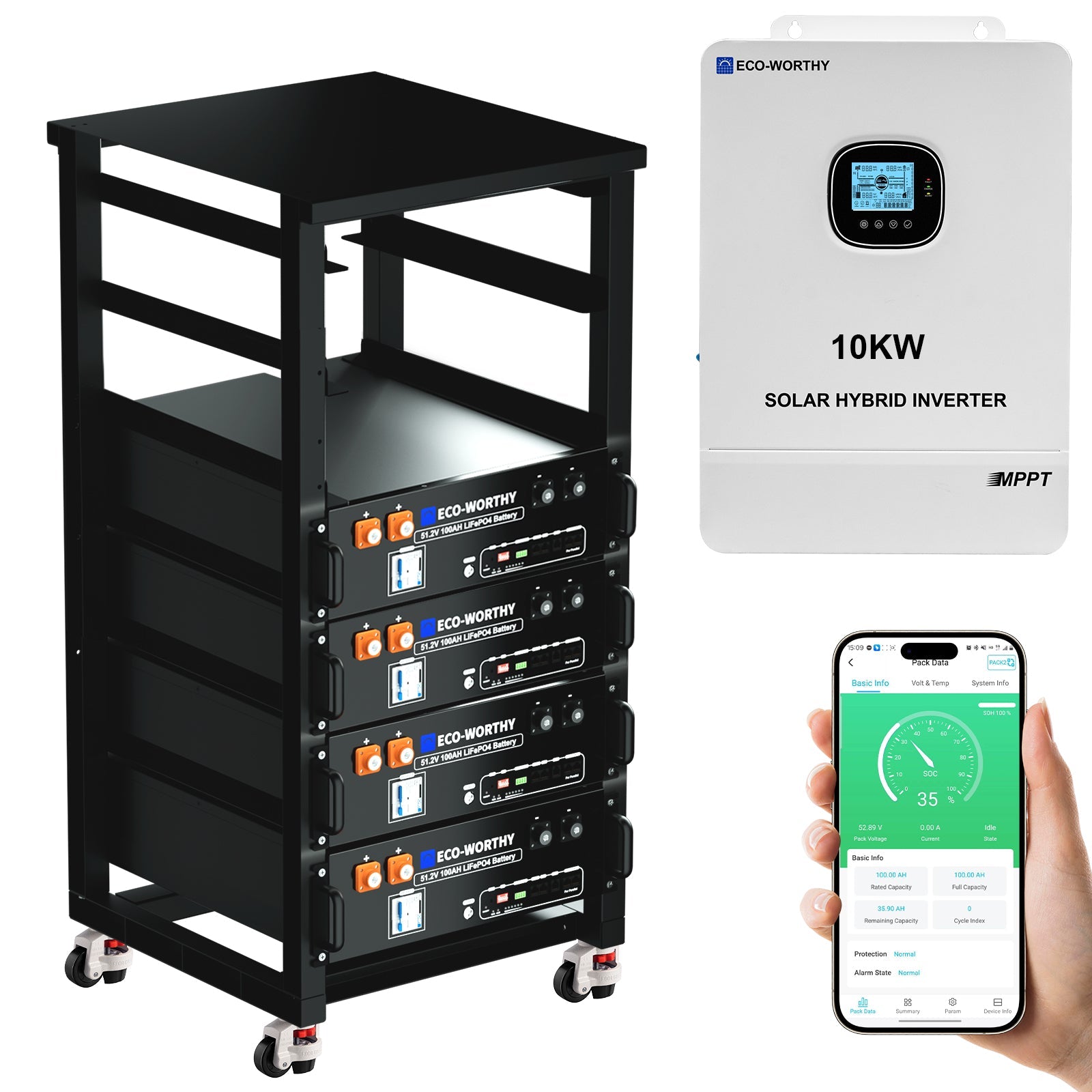

10KW AIO Inverter | 20.48kWh Lithium Battery
4 x 48v 100ah Serve Rack Lithium Battery
1 x 10000W Hybrid Inverter
1 x 6-Layer Battery Rack
1 Pairs Battery-to-Inverter Connection Cable
4 Pairs Battery Parallel Cables

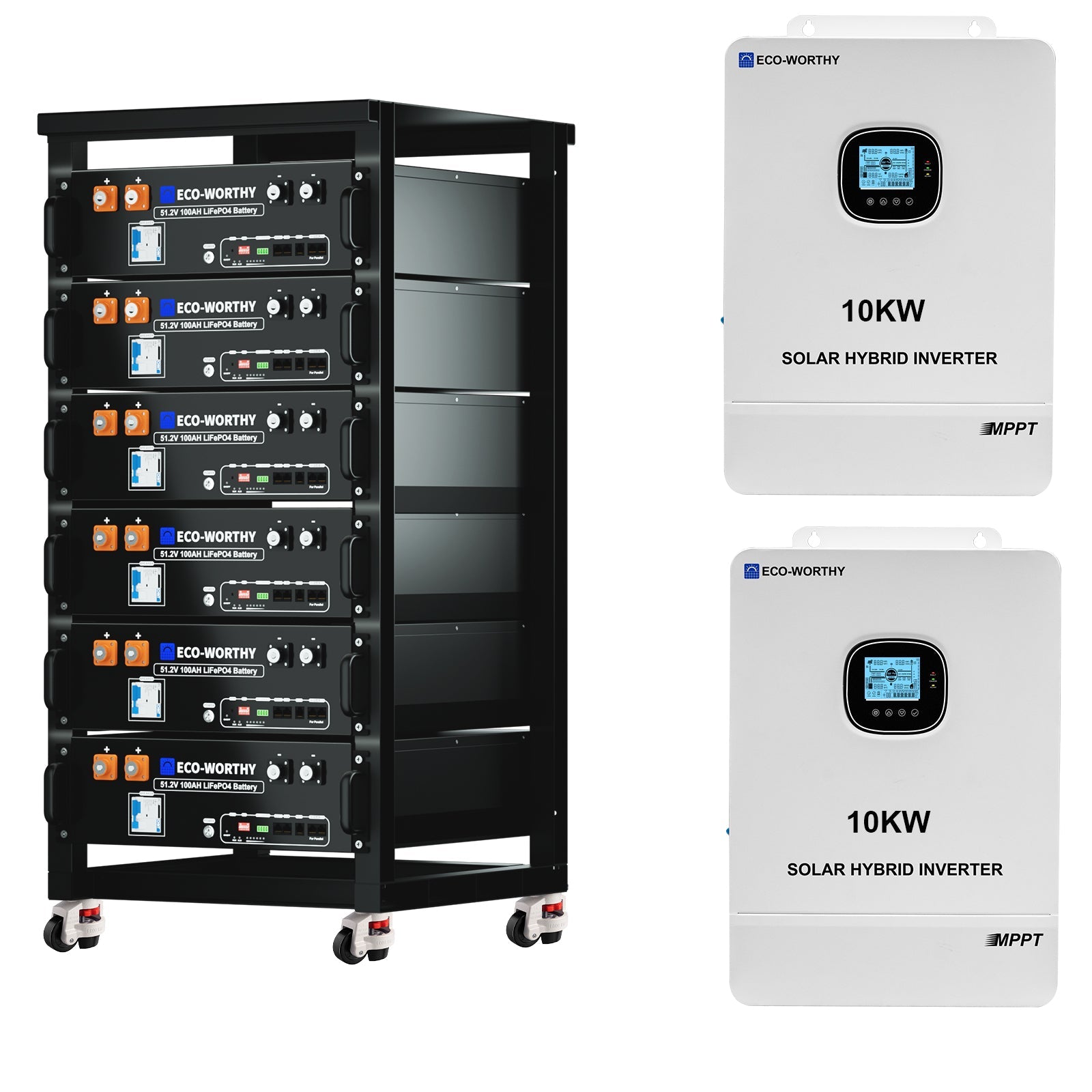

20KW AIO Inverter | 30.72kWh Lithium Battery
6 x 48v 100ah Serve Rack Lithium Battery
2 x 10000W Hybrid Inverter
1 x 6-Layer Battery Rack
2 Pairs Battery-to-Inverter Connection Cable
6 Pairs Battery Parallel Cables

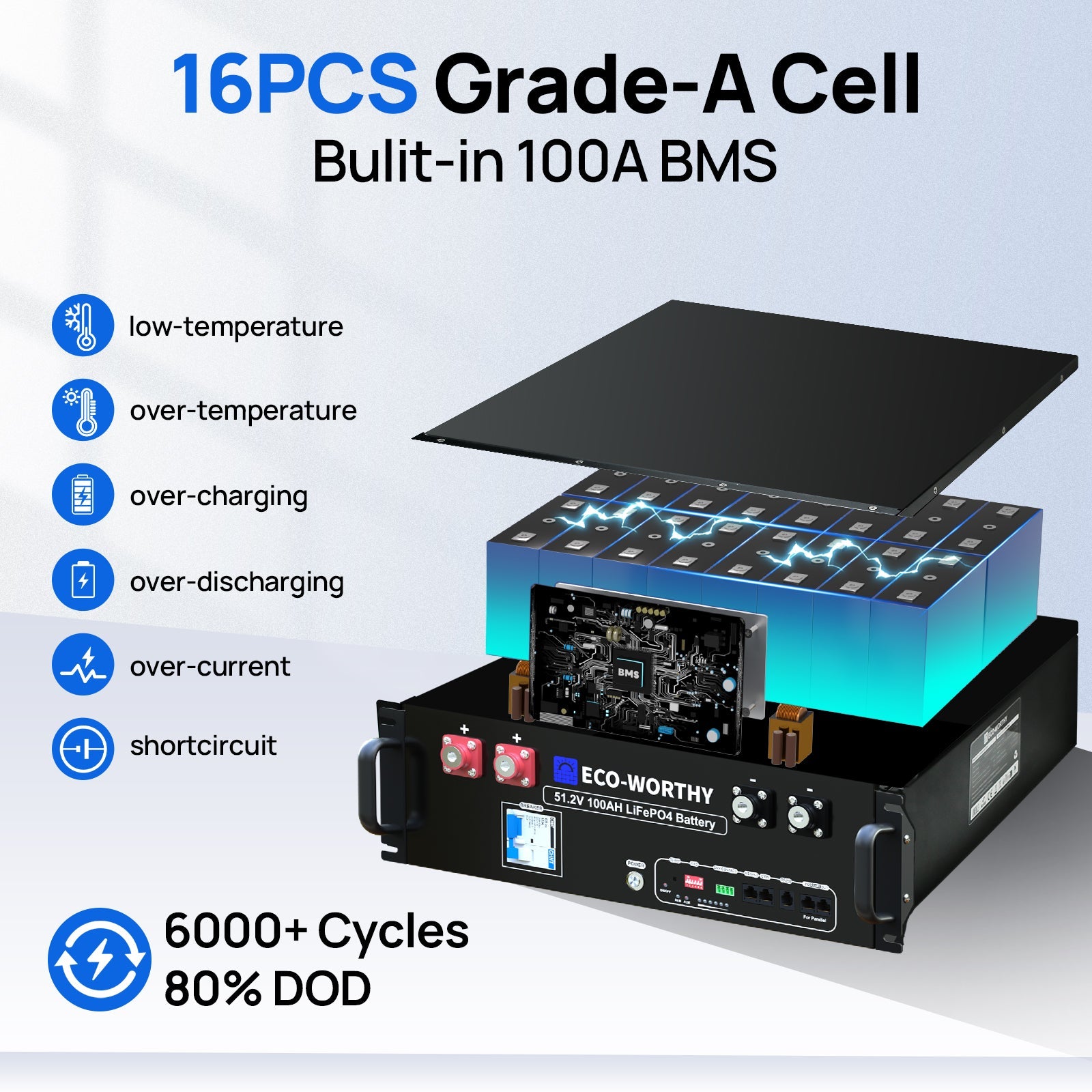

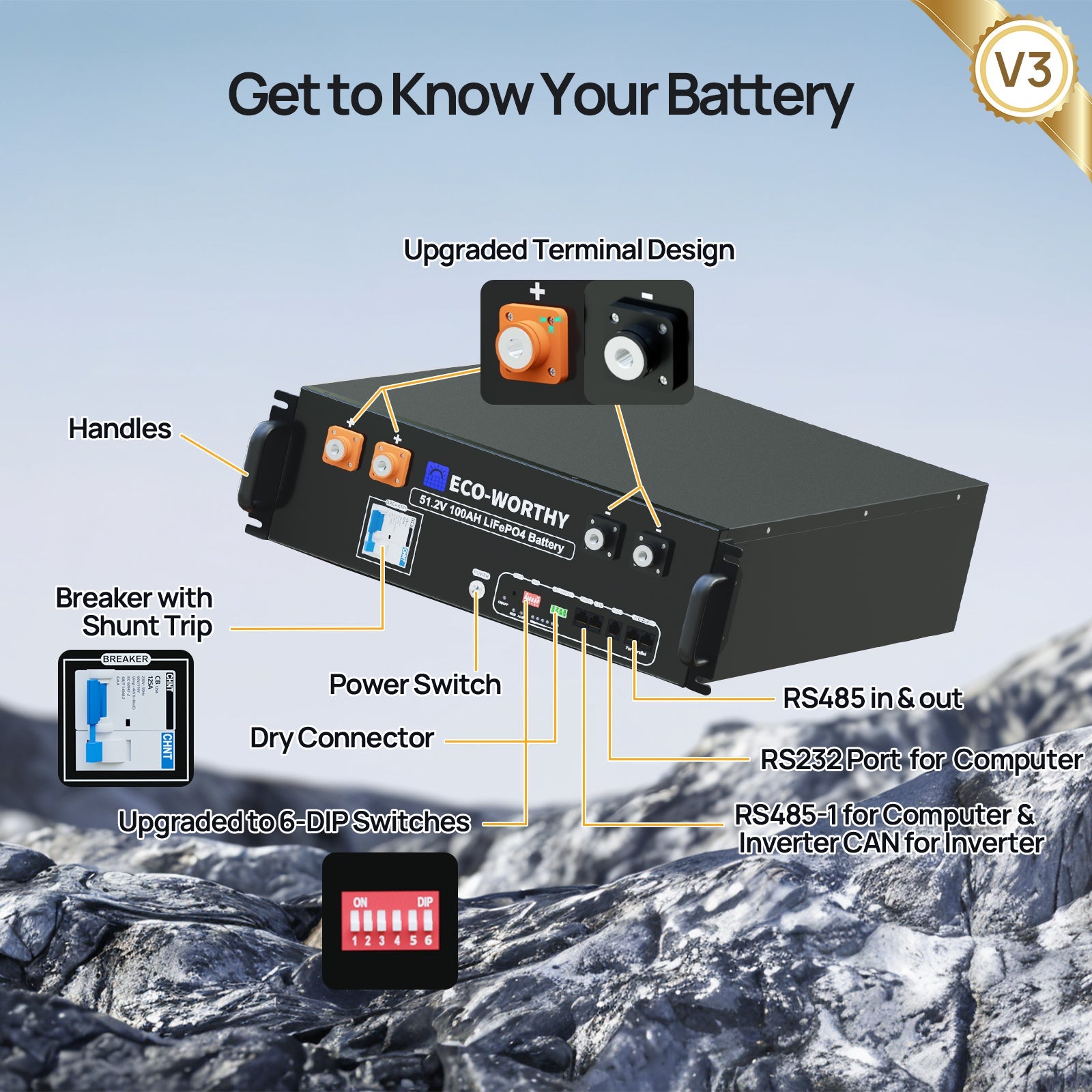

51.2V 100AH SERVE RACK LITHIUM BATTERY
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
| Screw size: M8 | Battery Size: 22.55*17.13*5.63inch |
| Battery Weight: 97 lbs |

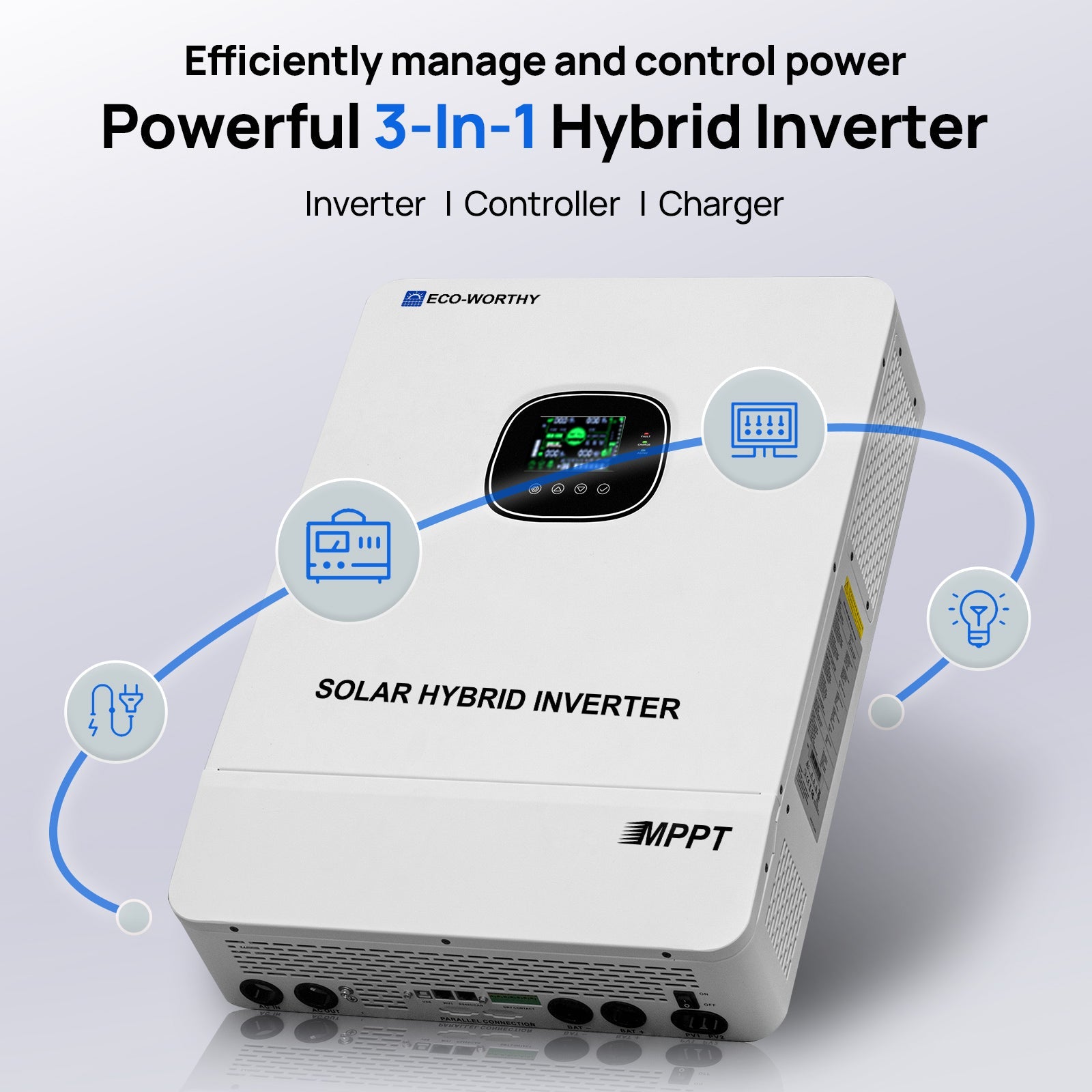

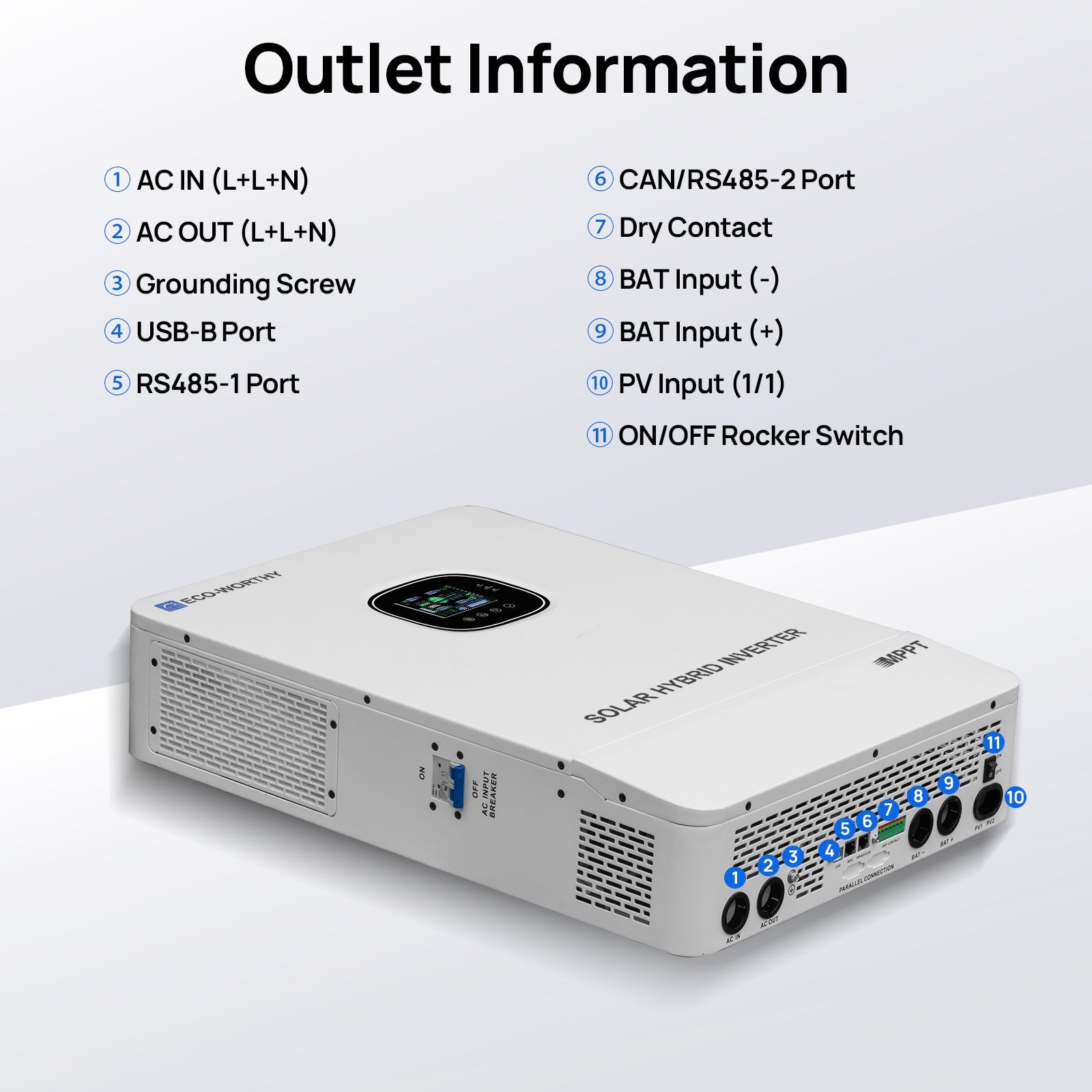

10000W HYBIRD INVERTER PARAMETER
| Split Phase: | L1/L2/N/PE(L1/L2split) | Single Phase: | |
| AC Output Phase | 5.000W/5.000W |
AC Output Phase | 10000W |
| ACOutputRatedPhasePower |
120Vac/120Vac |
AC Output Rated Power | 120Vac |
| AC Output RatedPhase woltage |
41.7A/41.7A |
AC Output Rated Voltage | 83.3A |
| AC Output RatedPhaseCurrent |
50Hz/60Hz | AC Output Rated Current A | 50Hz/60Hz |
| AC OutputFrequency |
L1/L2/N/PE(L1/L2 split) |
AC Input Phase | L/N/PE(L1/L2parallel) |
| ACInput Phase |
5.000W/5.000W |
ACInputRatedPower | 10000W |
| ACInputRatedPhasePower | 120Vac/120Vac |
ACInput RatedVoltage |
120Vac |
| AC InputRatedPhaseVoltage |
63A63A | AC Input Voltage Range |
90-140Vac |
| ACInput MaxPhase Current |
50Hzor60Hz |
ACInput Max Current |
126A |
| ACInputFrequency | 90-140Vac/90-140Vac |
AC Input Frequency |
50Hz/60Hz |
| AC Input PhaseVoltage Range |
120A |
AC Input Voltage Range |
90-140Vac |
| AC Charge To Battery Current |
L/N/PE(L1/L2parallel) |
AC Charge ToBatteryCurrent |
120A |
| Battery Input:BatteryVoltage |
48Vdc(40V-60V) | ||
| Max Battery discharge Current |
220A | ||
| Max Battery charge Current |
200A | ||
| PV Input | |||
| Number Of PV Circuits |
2 | ||
| PVinput Voltage Range |
100Vdc-500Vdc | ||
| MPPTinput Range |
125Vdc-425Vdc | ||
| MaxPVinput Current | 22A+22A | ||
| MaxPVinput Power | 5500W+5500W | ||
| MaxPV Charge ToBattery Current |
200A | ||
| IP Grade | IP20 |
