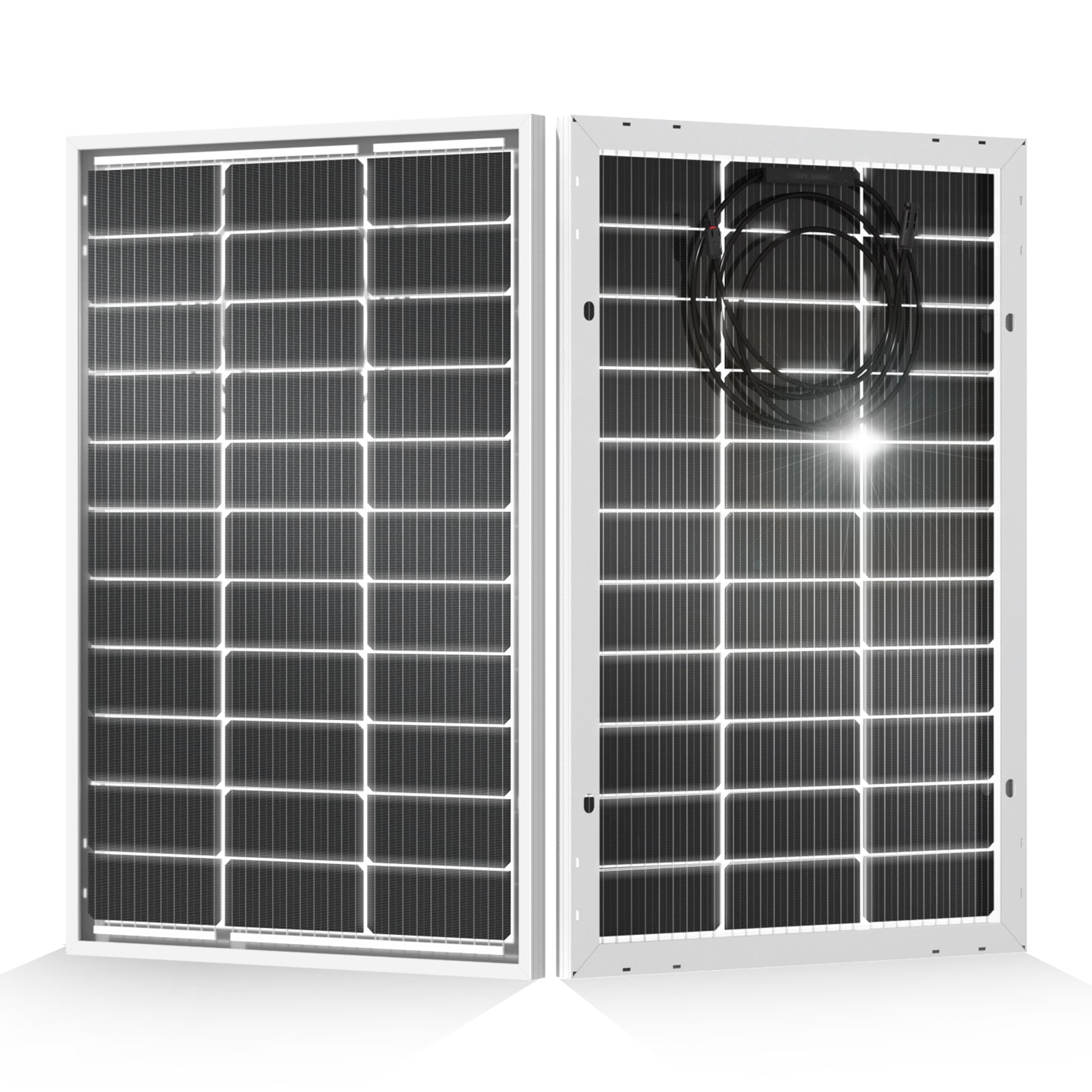

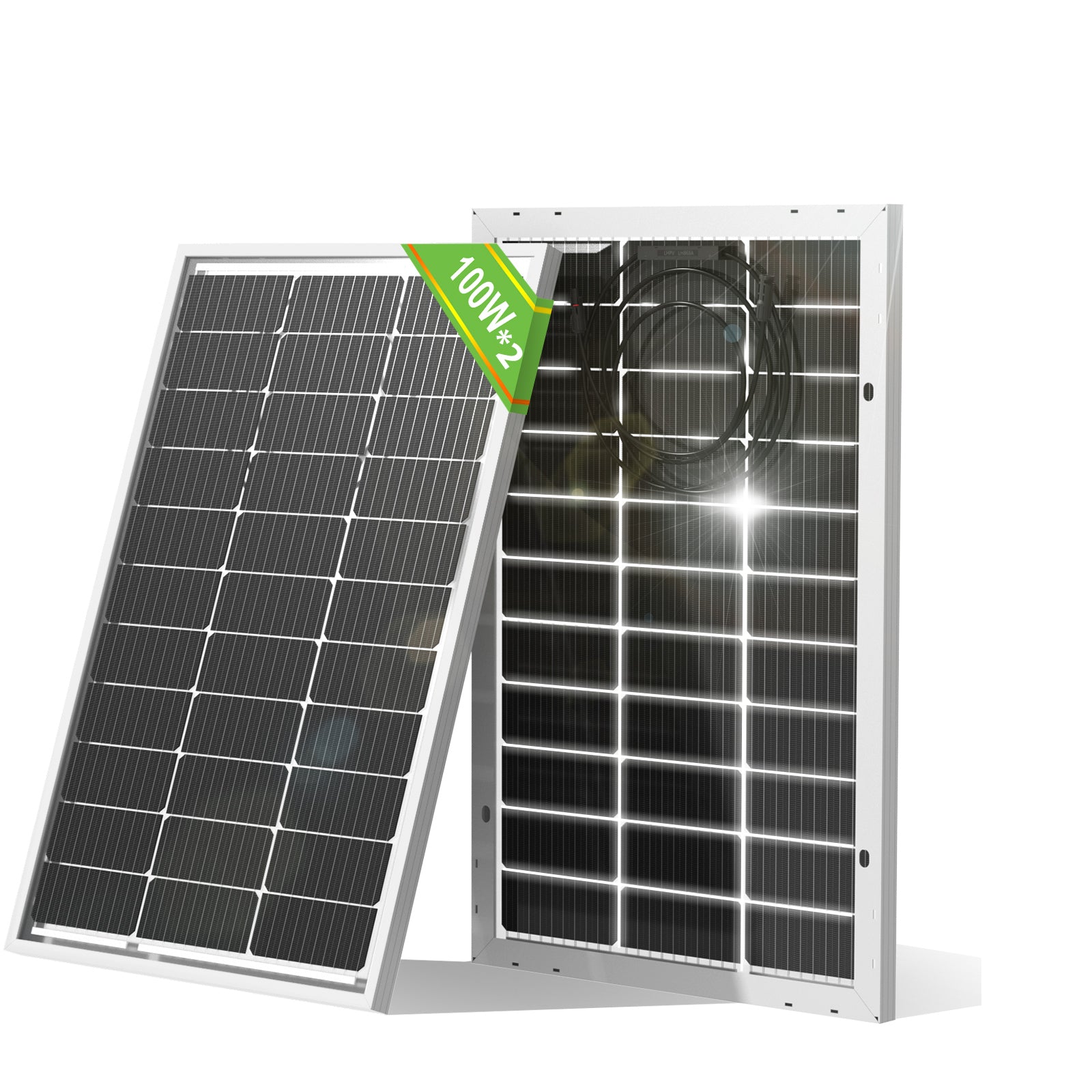

| Rated Power: 100W |

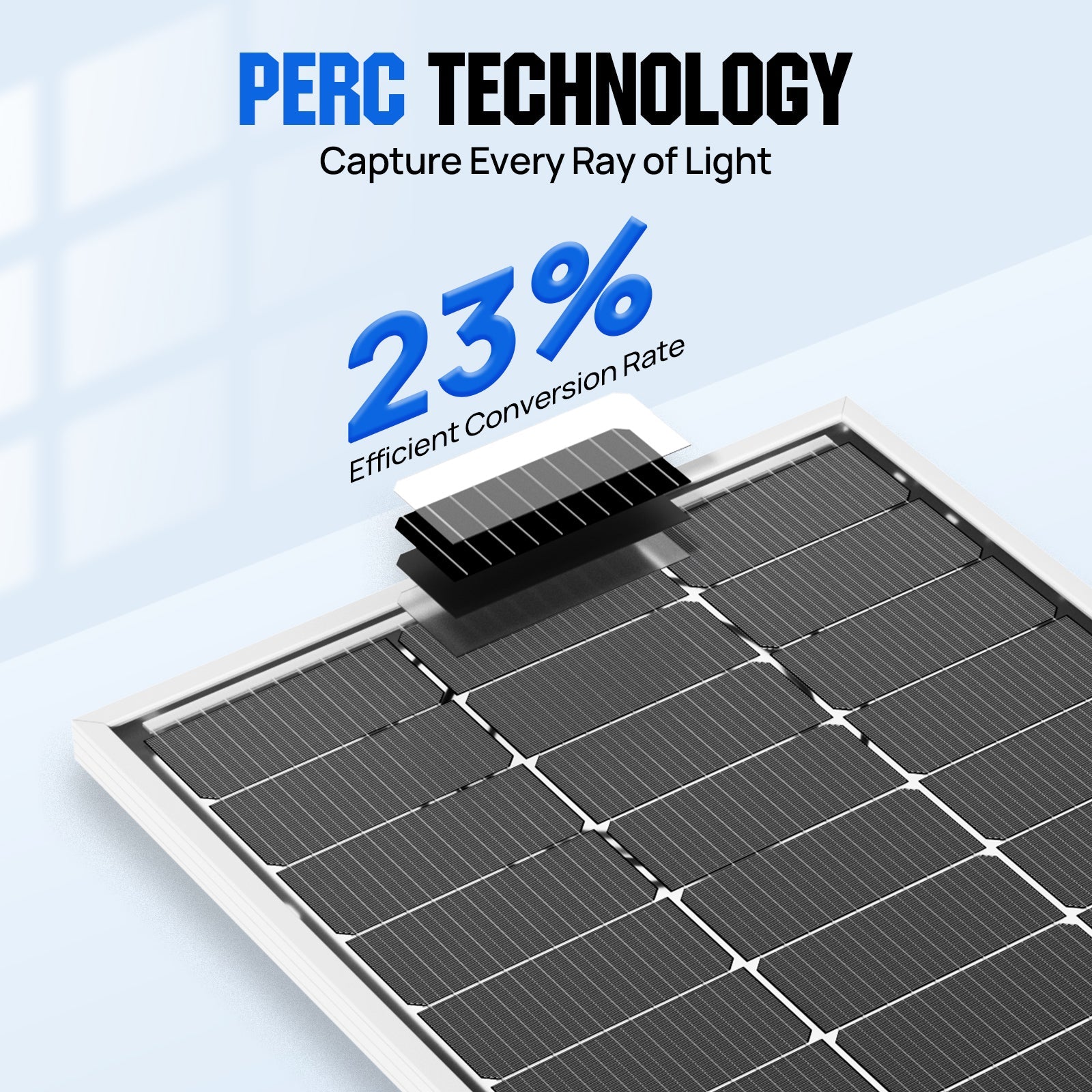

Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.5V±3%
|
Open Circuit Voltage(Voc): 22.7V±3%
|
| Short circuit current: 5.55A±3%
|
Maximum current: 5.13A±3%
|
| Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame |
Length of extension cable: 90cm（2.95ft） |
| Size of extension cable: 4mm²（11AWG）/MC4 Connector |
Weight: 14.55 lbs(6.6 kg) |

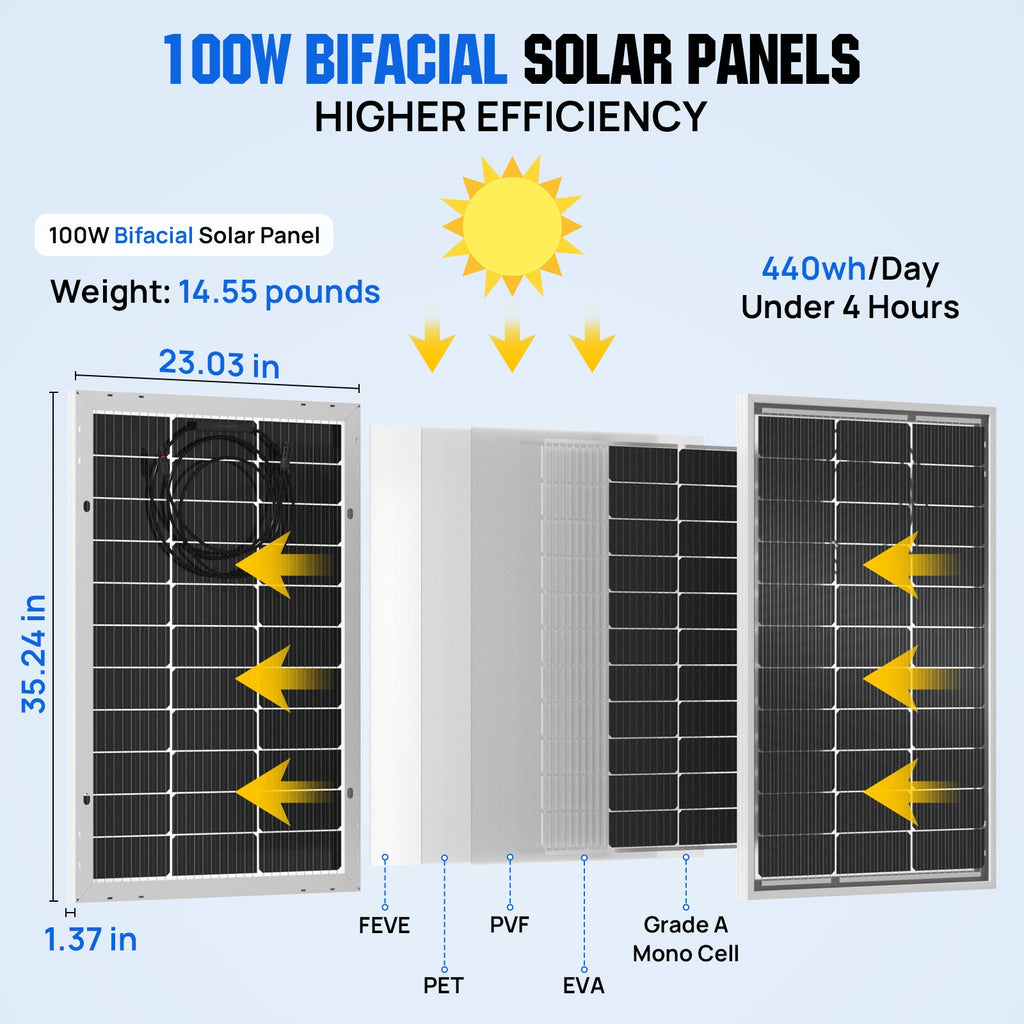

| Size: 895*585*35mm/35.24*23.03*1.37in |
|
