Description

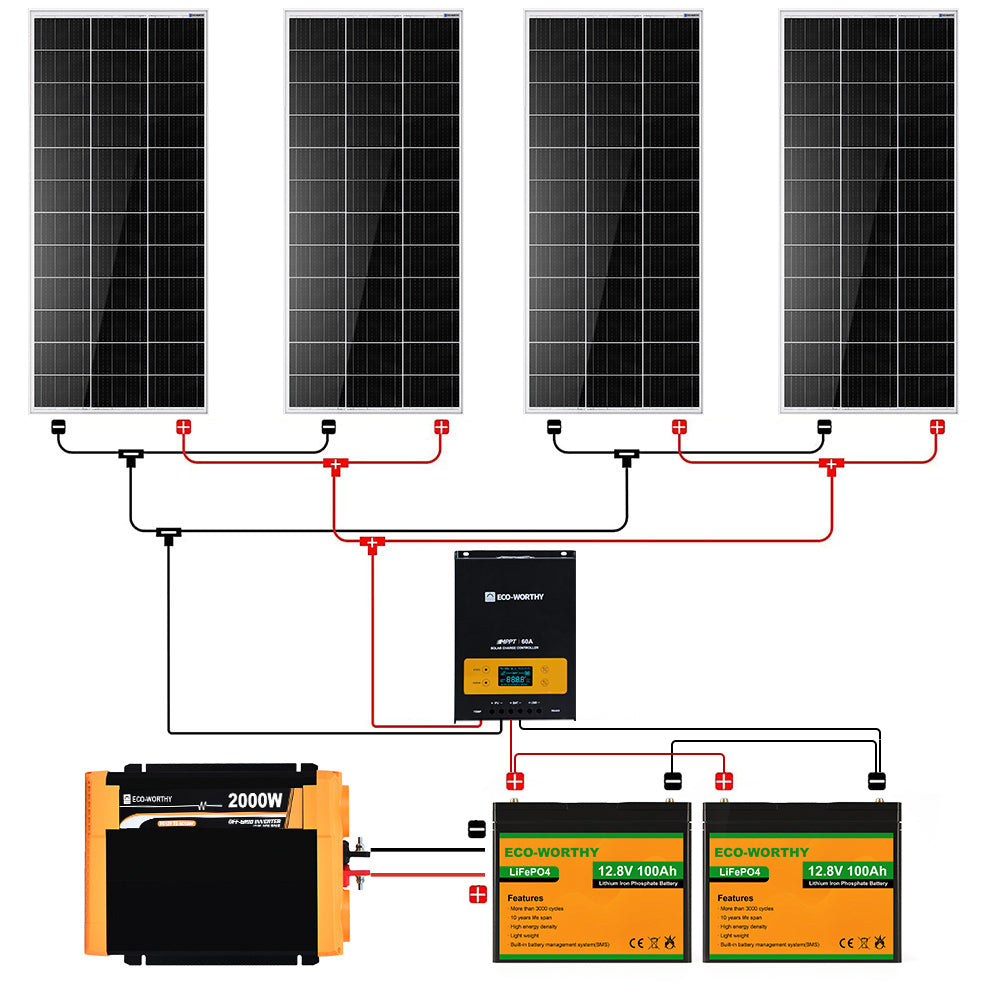

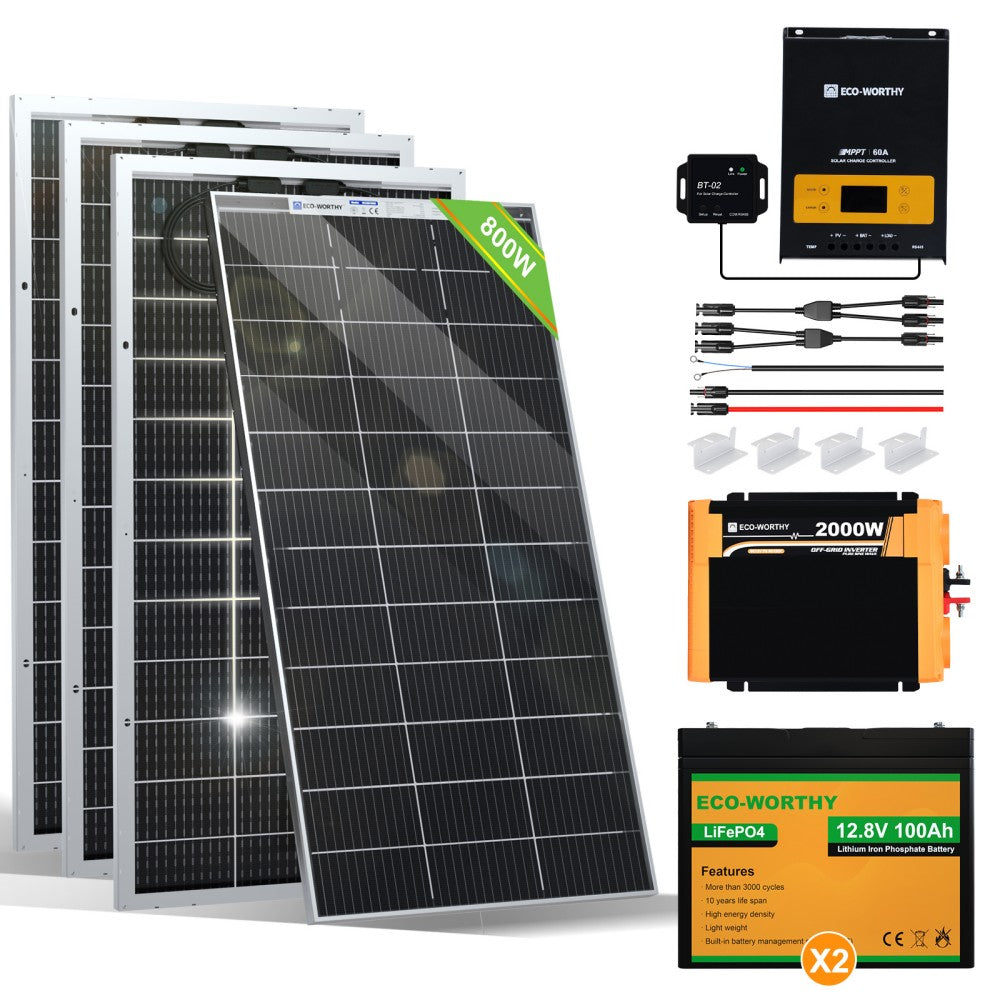

Package Includes
4x Bifacial 195W Mono Solar Panel
1x 60A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
4x Z Mounting Bracket
3x Y MC4 Connector
1x 1.5M Tray Cable
1x 2000W 24V-110V Pure Sine Wave Inverter
2x 100Ah 12V LiFePO4 Lithium Battery

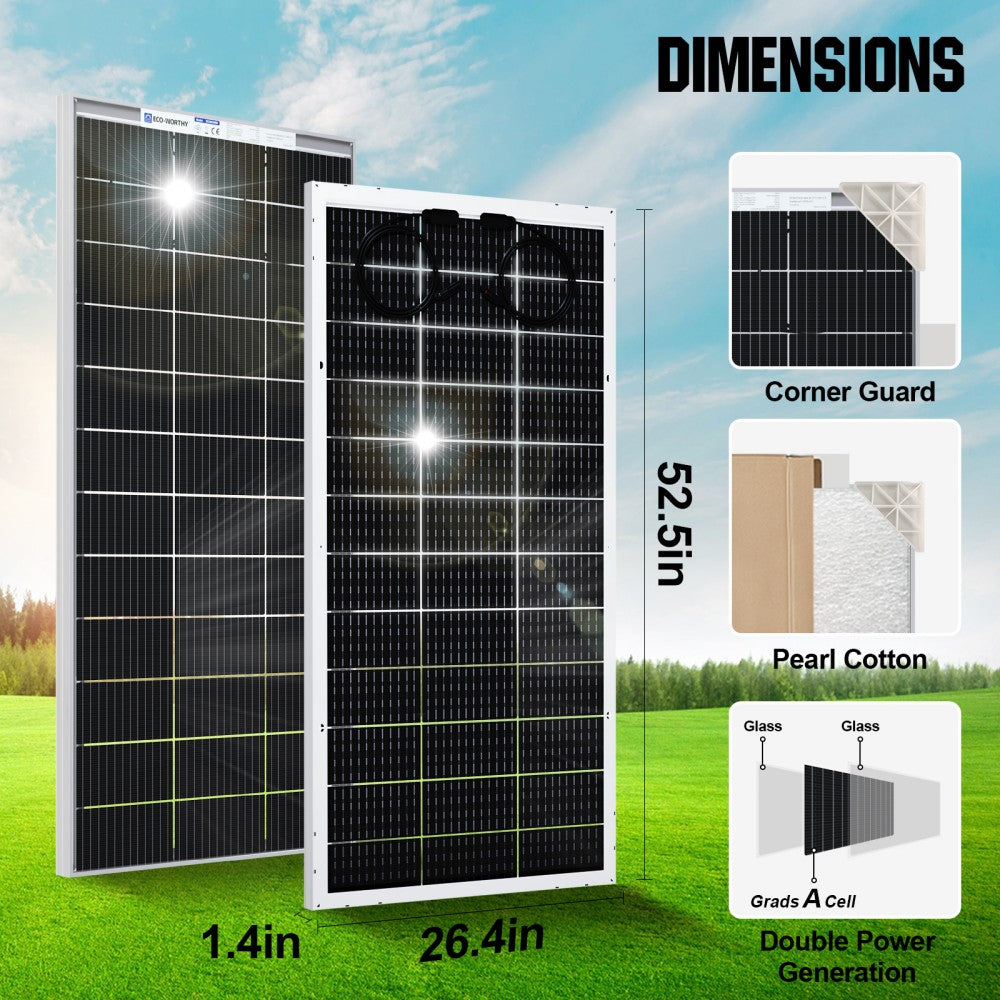

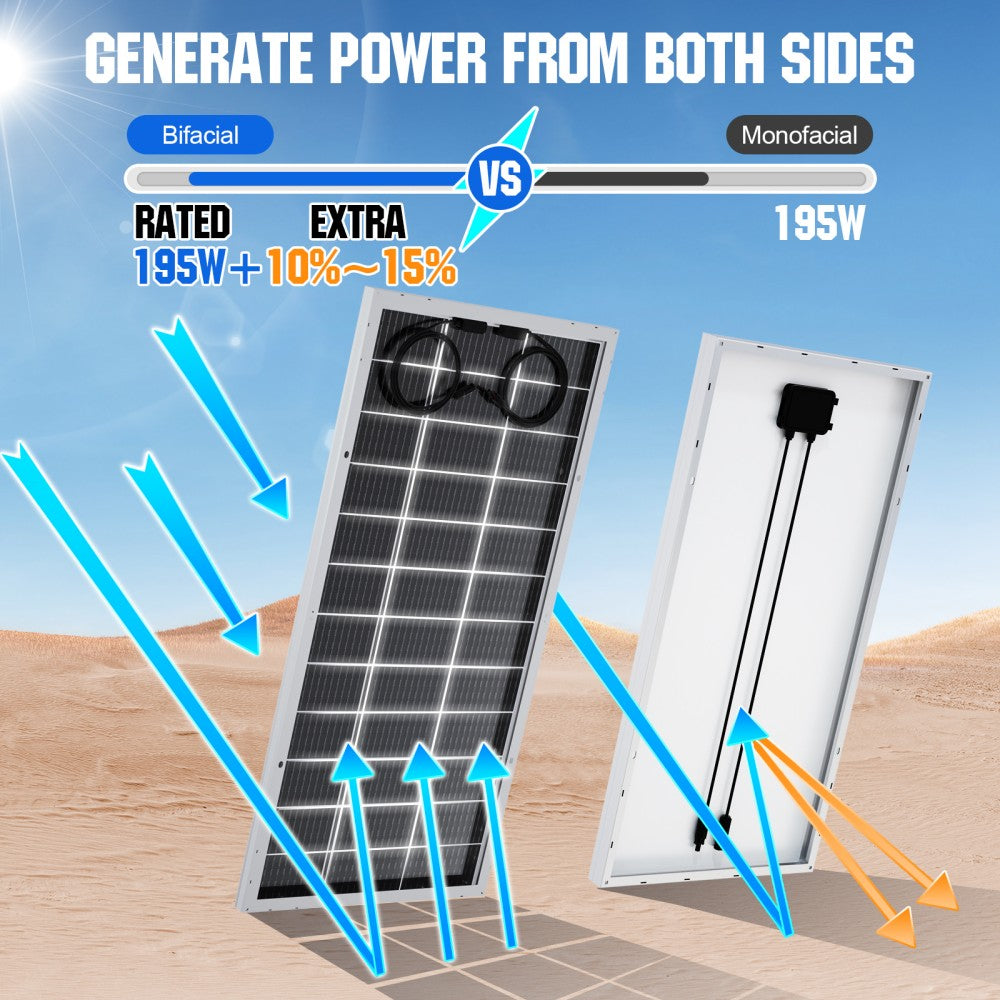

Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A | Maximum current: 9.85A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.48 lbs(9.29 kg) |
| Size: 52.6x26.38x1.38in (1335*670*35mm) |

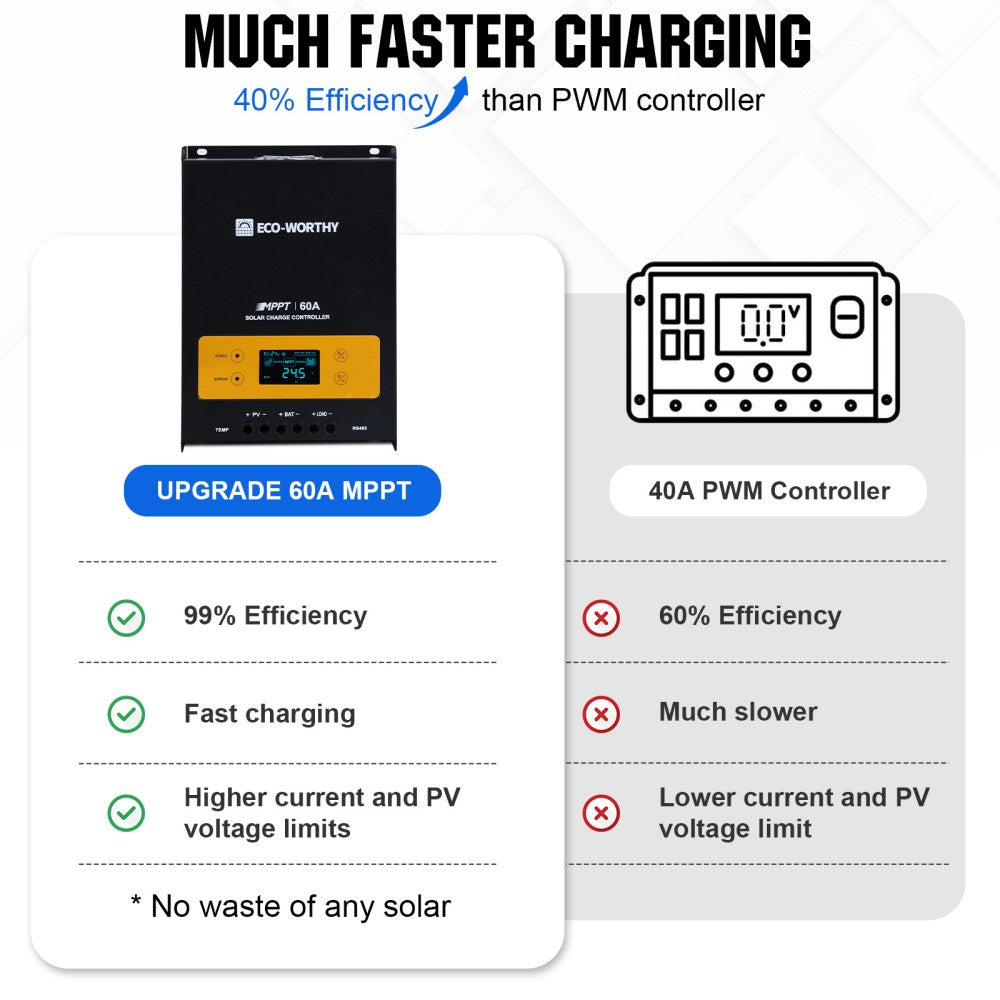

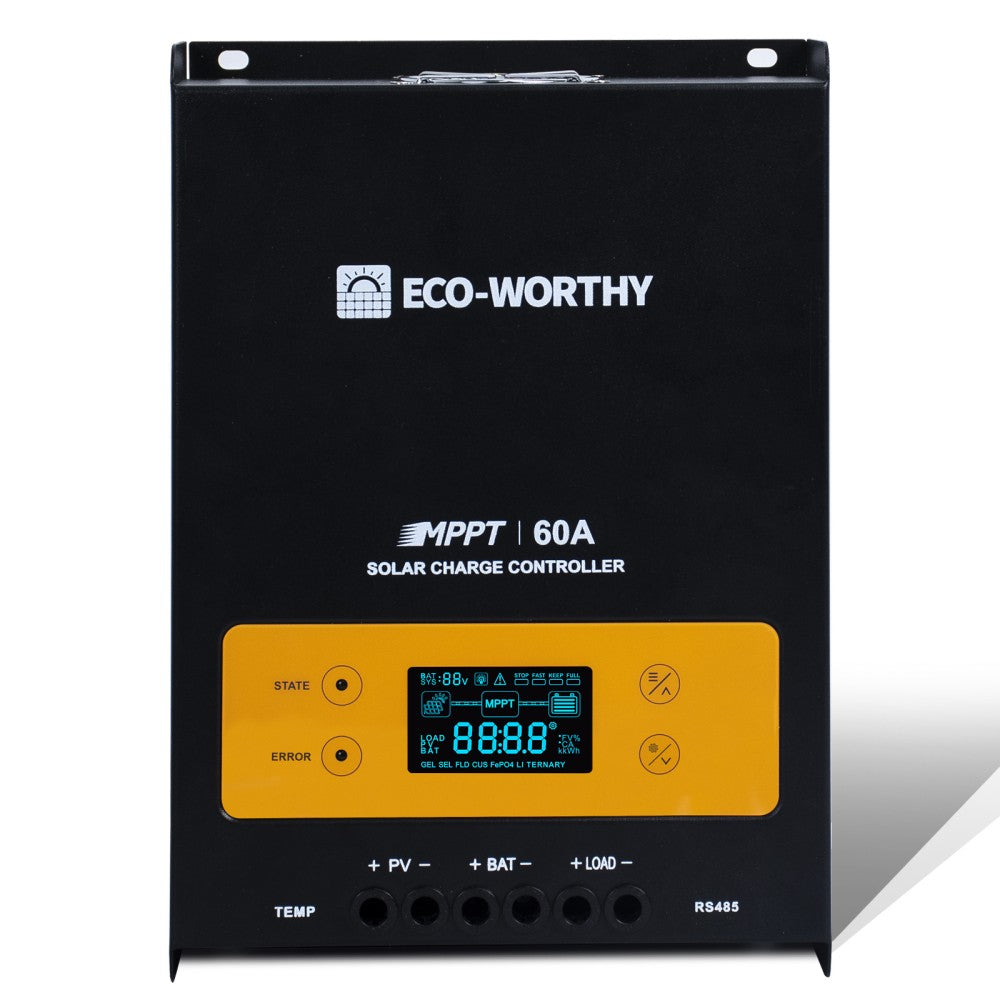

60A MPPT Solar Charge Controller
| Battery voltage：12V/24V/36V/48V | Max Solar Input Power：780W(12V)/1560W(24V)/2340W(36V)/3120W(48V) |
| Charging mode：MPPT | Rated Load Current：30A |
| Charge Efficiency (Peak)：97% | Max Charge current：60A |
| Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded | No-load static loss: 0.5W-1.2W |
| Size：240*166*65mm | Weight：1.96KG |
| Maximum wire size: 20mm2 |

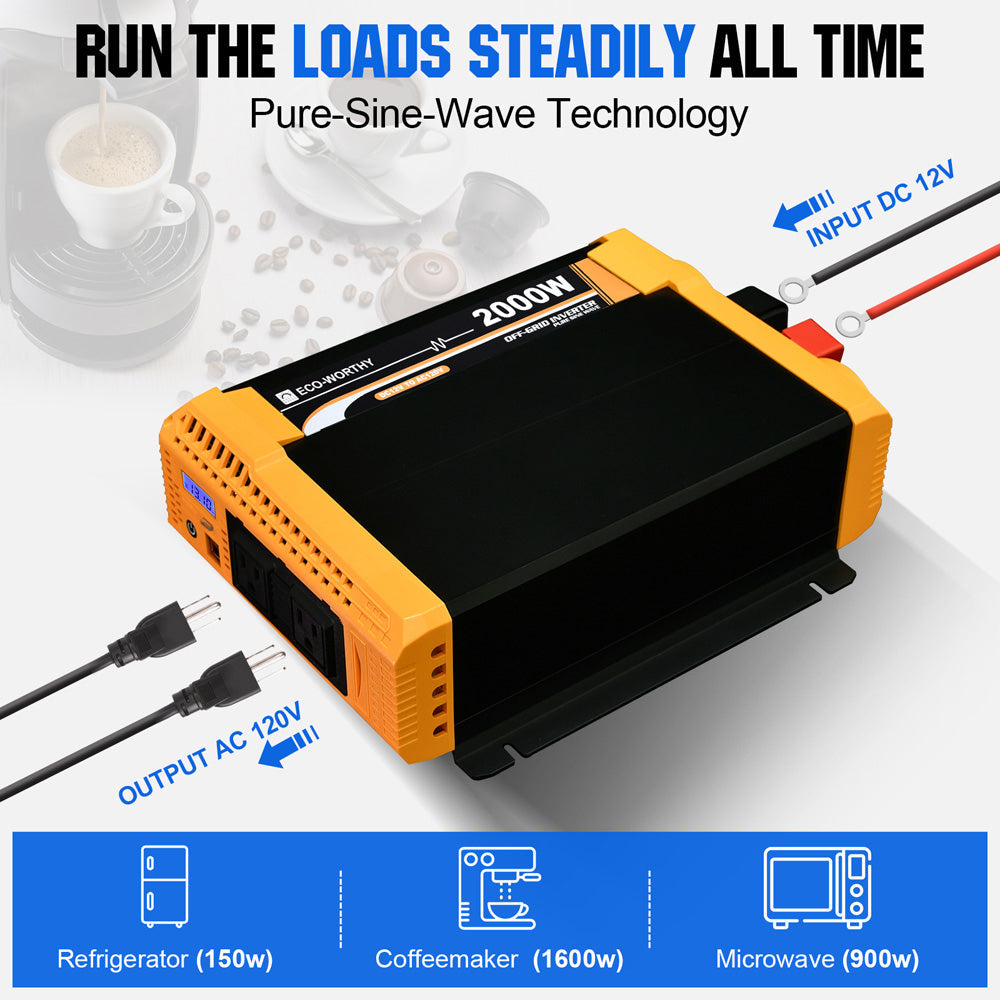

2000W 12V Off Grid Inverter
| Output Continuous Watts(W): 2000W+18W USB | Surge Capacity (PeakPower): 4000W |
| Rated Input DC (V,A): 12V Battery, 200A | Input Voltage Range: 10.5-16Vdc±0.3V |
| Rated Frequency (Hz): 60Hz±1 | Rated Output AC (V,A): 115Vac±10%, 18A |
| Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max) | No Load Current: <1.2A |
| Optimum Efficiency: 85% min | Fuse (A): 40A*6 |
| FuseType: Internal Blade | Output Wave Form: Pure Sine Wave |
| Touch Temperature: 65℃(149℉)max | Operating Temperature: -20℃~40℃ (4℉~104℉) |
| Operating/Storage Humidity RH: 5~95% | Cooling System: Thermo Fan |
| THD: <4.5% | Dimensions (L*W*H): 16.8*9.8*4.1 in |
| Assembled Weight (kg): 7.67 lbs |

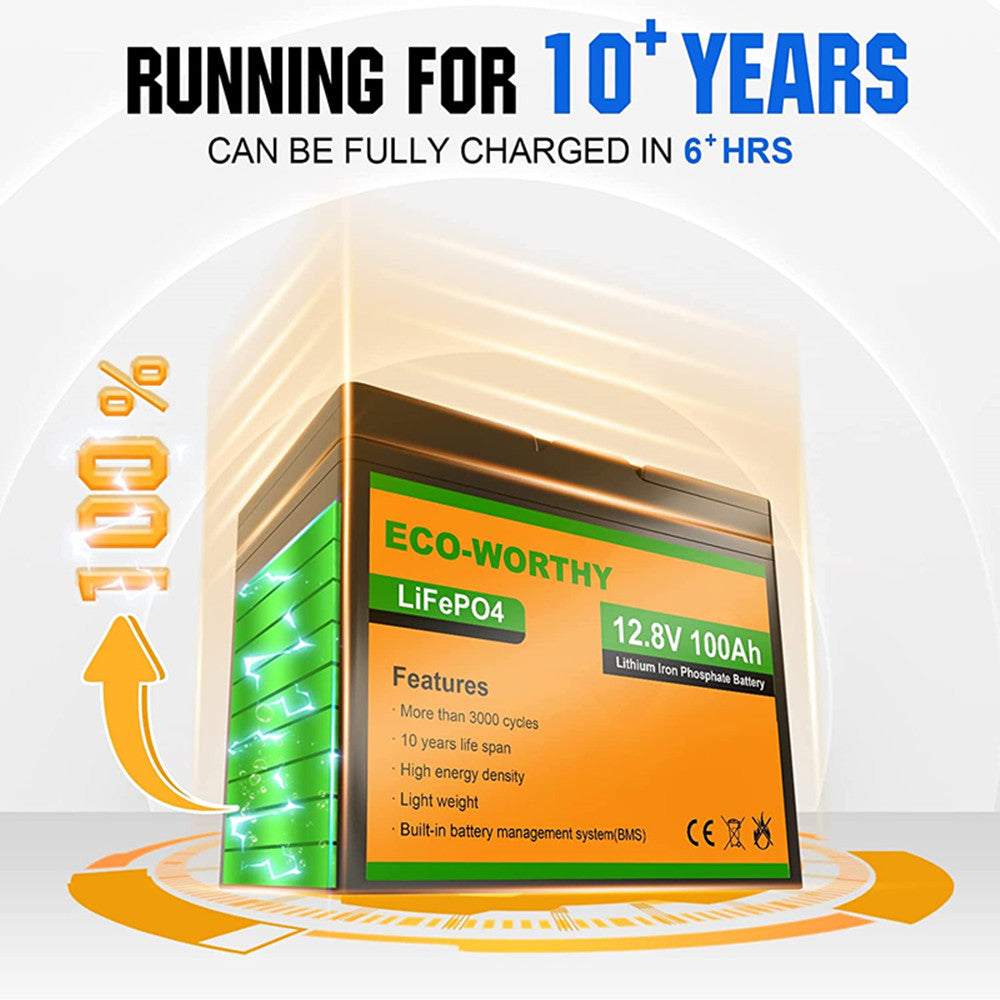

100Ah LiFePO4 Lithium Battery
| Battery Capacity: 100Ah | Battery Power: 1280Wh |
| Battery Voltage: 12.8V | Maximum Charge/ Discharge Current: 50A/100A |
| Charge Temperature Range: 0-45℃ | Disharge Temperature Range:﹣20－55℃ |
| Maximum Charge Voltage: 14.6V | Discharge Cut-Off Voltage: 10V |
| Screw size: M8 | Battery Size: 260*168*209mm（10.2*6.6*8.2inch） |
| Battery Weight: 9.47kg |

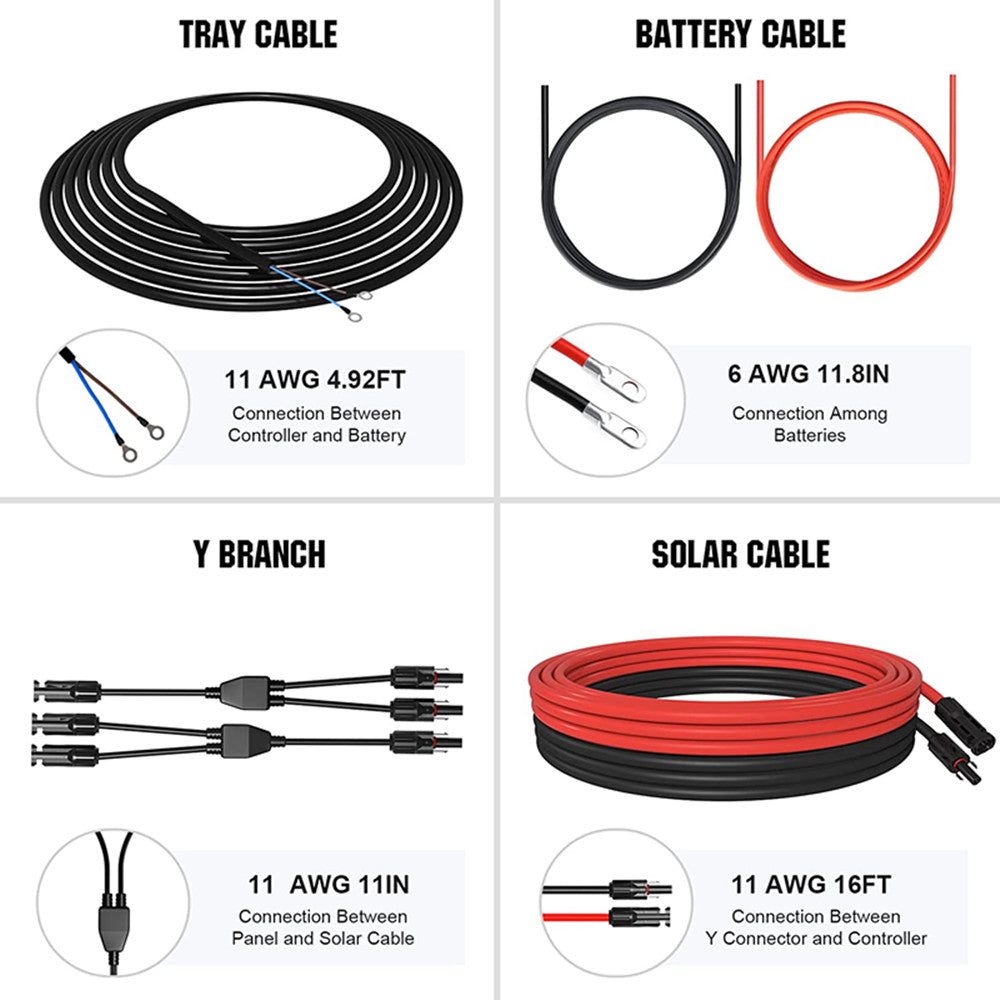

16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） | Conductor: Tinned copper wire |
| AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
Z Mounting Brackets
| 4 pieces of Z shape solar panel brackets | 8 pieces of stainless steel nuts and cap bolts |
Y Branch Cable MC4 Connectors
| Compatible with MC4 solar connector. | Easy installation for 2 solar panels connected in parallel. |
