Description

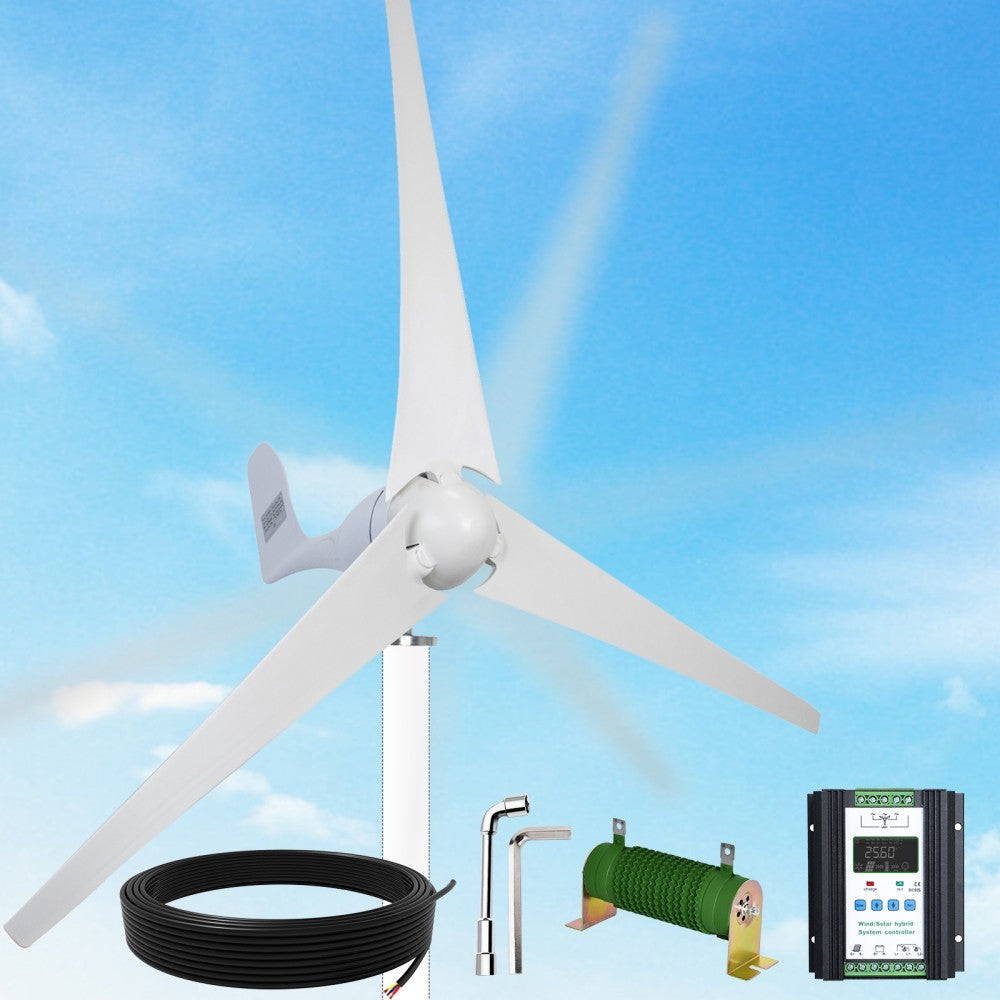

400W Wind Turbine Generator
| Rated voltage: 24V | Rated wind speed: 13M/S |
| Starting wind speed: 2.0M/s | Maximum wind speed: 50M/S |
| Blade diameter: 1.3M | Rated power: 400W |
| Net weight: 5kg |

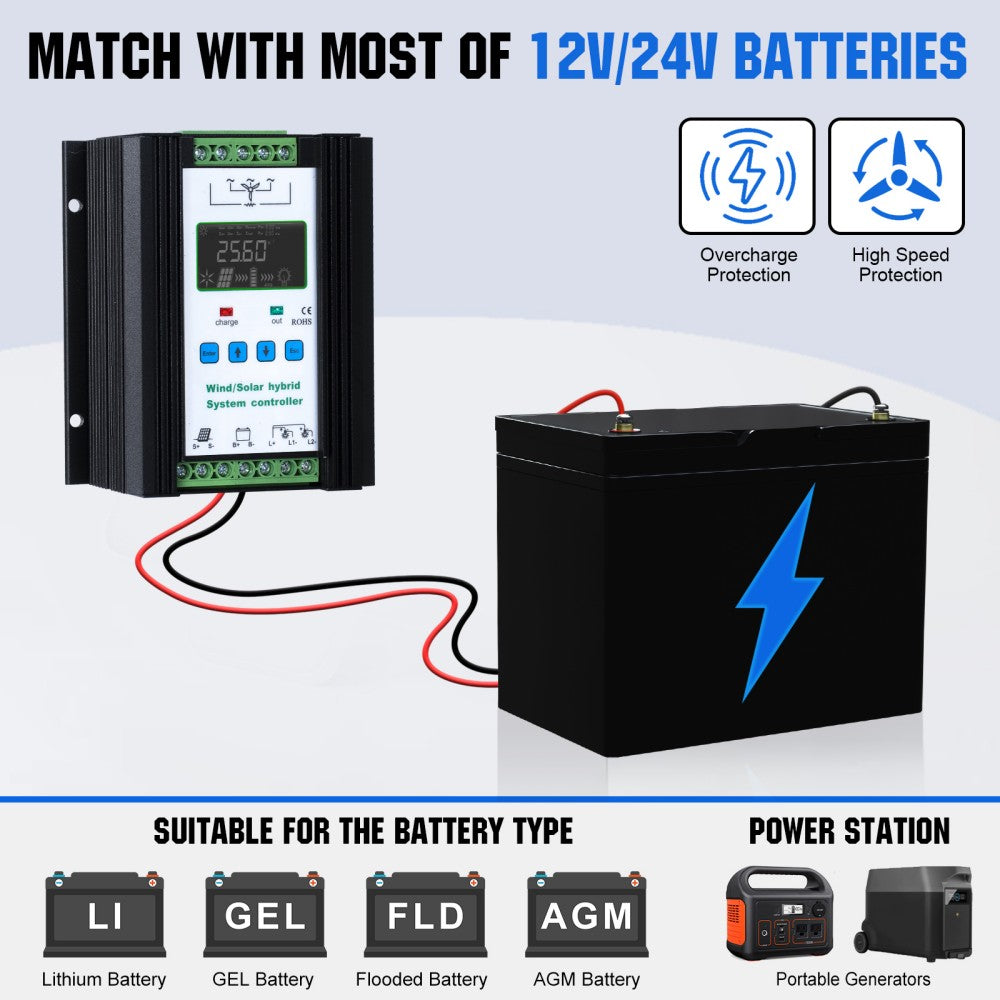

40A Hybrid Controller
| Battery system voltage level: 24V | PV array maximum open circuit voltage: 55.2V |
| Recovery Voltage after PV array maximum open circuit voltage: 52.8V | PV array minimum operating voltage: >Vbat+1V |
| Photovolinic rated current rating: 40A | PV module power: ≤1000W |
| Fan rated voltage level: 24V | Fan array maximum open circuit voltage: 51.2V |
| Fan rated current: 33A | Wind Turbine Power: ≤800W |
| Voltage of restriction charging: Vbat>BCV+0.4V | DC load output rated current: 30A |
