| AC Input Mode |
|
| Rated Input Voltage: 110/120VAC |
Input Voltage Range: 90V-140VAC |
| Frequency: 50Hz/60Hz(auto detect) |
Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: 92% |
AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A |
|
| Invert Mode |
|
| Output Voltage Waveform: Pure Sine Wave |
Rated Output Power: 3500W |
| Rated Output Voltage: 120VAC |
Peak Power: 6000W |
| Bypass Breaker: 40A |
Rated Battery Input Voltage: 48V |
| Min Starting Voltage: 44V |
Power Saving Mode: Load ≤50W |
| AC Charging Mode |
|

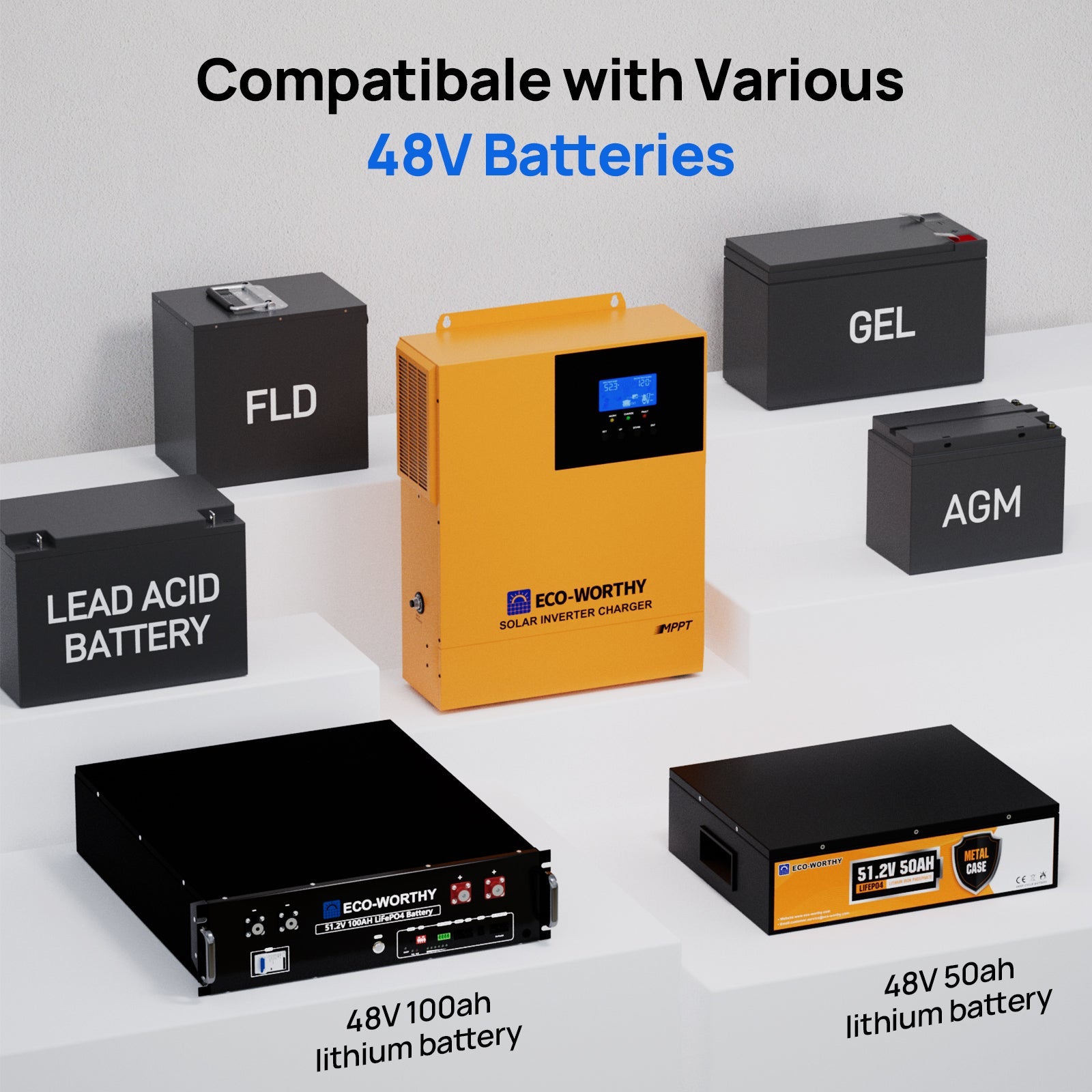

| Battery Type: Lead acid or lithium battery |
Max Charge Current: 40A |
| Charge Voltage Range: 40-60VDC |
Overcharge Protection: Alarm and turn off charging after 1 minute |
| PV Charging Mode |
|
| Max Input Power: 5000W |
PV Charging Current Range：0-80A(can be set) |
| Max PV Open Circuit Voltage: 500VDC |
PV Operating Voltage Range: 120-450VDC |
| MPPT Voltage Range: 120-450VDC |
Battery Voltage Range: 40-60VDC |
| Max Output Power: 4400W |
Charging Short Circuit Protection: Blown fuse |
