| Continuous output power: 3000W |
Surge power: 6000W |
| Surge current when power on: < 100A |
Output voltage: 110VAC (±3%); 120VAC
(-6%~+3%);240VAC (-9%~+3%) |
| Output frequency: 50/60Hz ± 0.2% |
Output wave: Pure Sine Wave |
| Output distortion THD: THD≤3% (Resistive Load) |
Rated input voltage: 24VDC |
| Input voltage range: 21.6 ~ 32.0VDC |
Rated output efficiency: > 90.0% |
| Max. output efficiency: > 94.0% (30% loads) |
Idle current: < 0.15A |
| No-load current: < 1A |

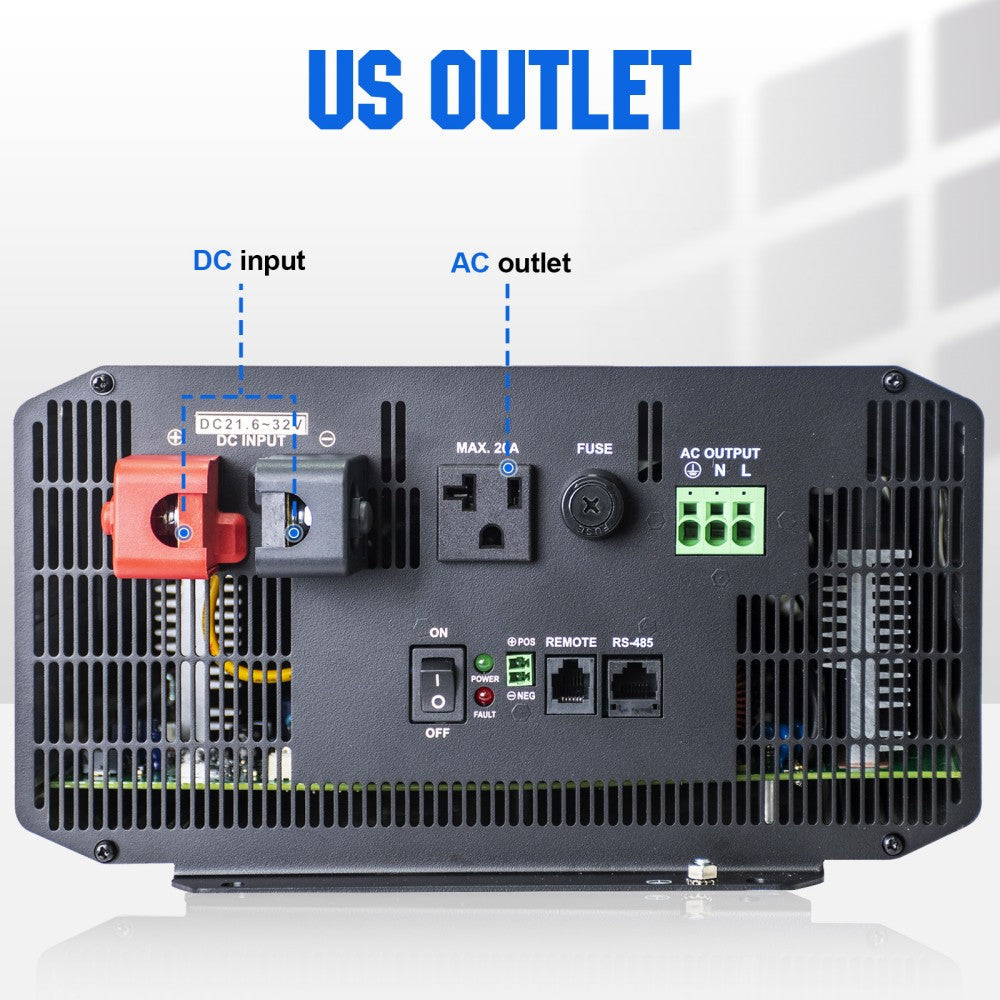

Input terminal: M6 |

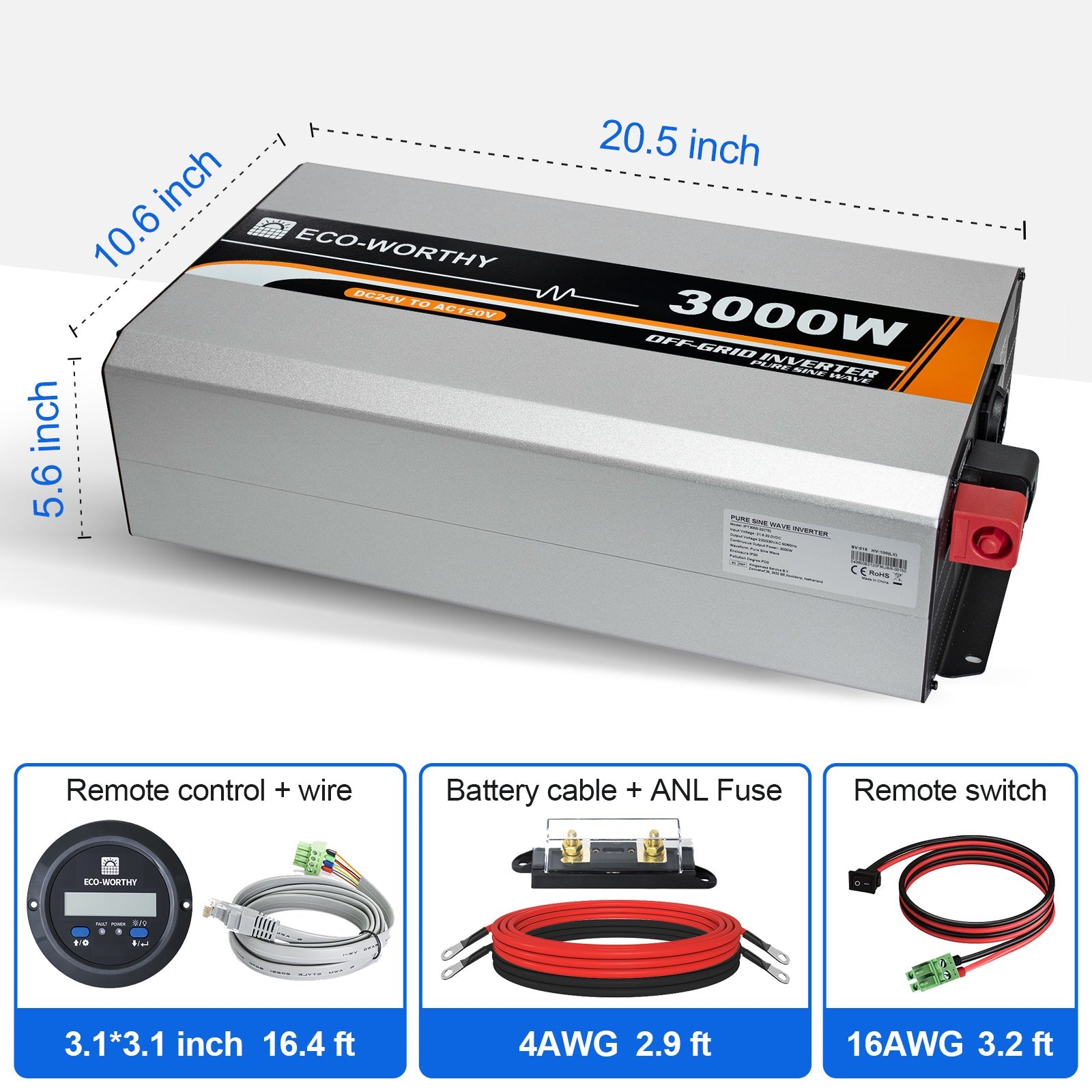

| Dimension (L x W x H): 521 × 270 × 143mm |
Mounting size: 495 × 145mm |
| Mounting hole size: Φ6mm |
Net Weight: 8.5kg |
