Description

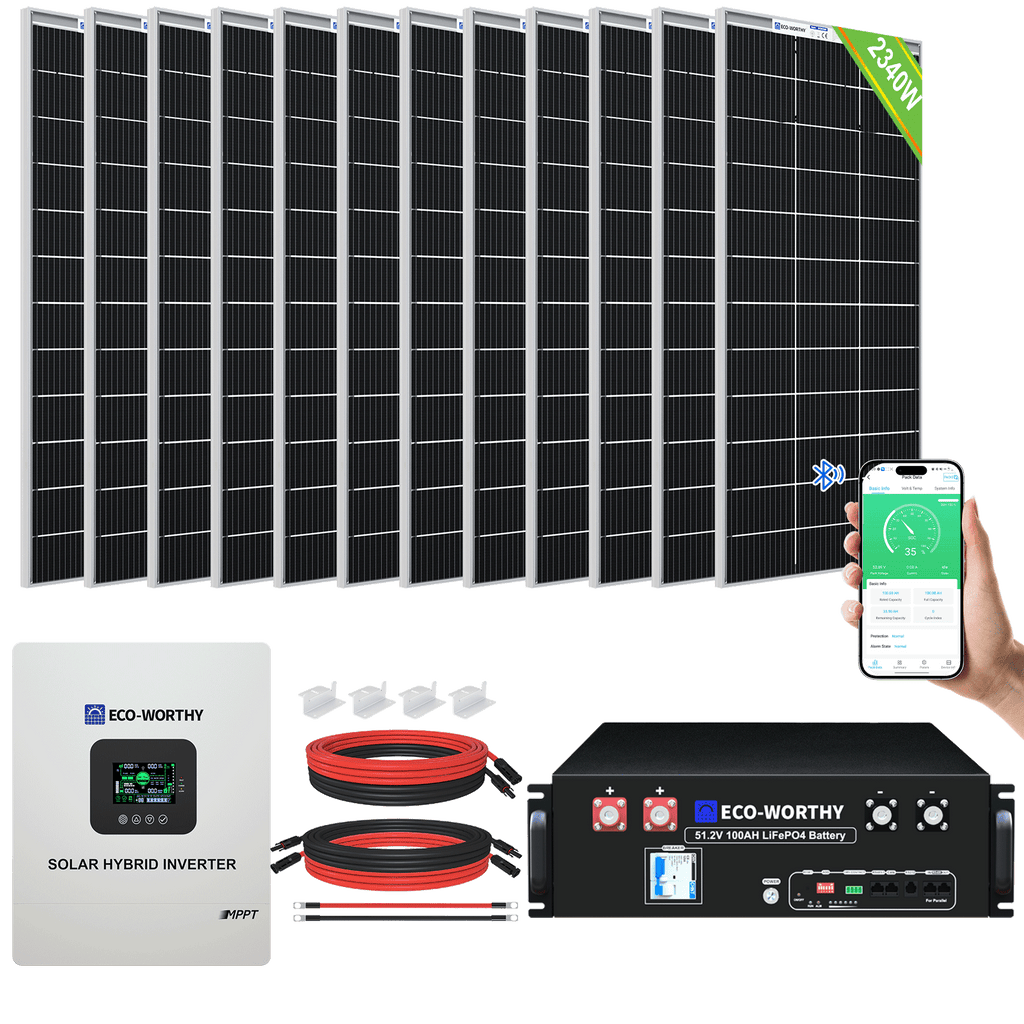

Package Includes:
2340W PV&5.12kWh Battery
12x Bifacial 195W Mono Solar Panel
1x 5000W 48V Split Phase Solar Hybrid Inverter Charger
1x 5M 8AWG Extension Cable with MC4
1x 5M 12AWG Solar Cable with MC4
12x Z Mounting Bracket
1x 100Ah 48V Rack LiFePO4 Lithium Battery

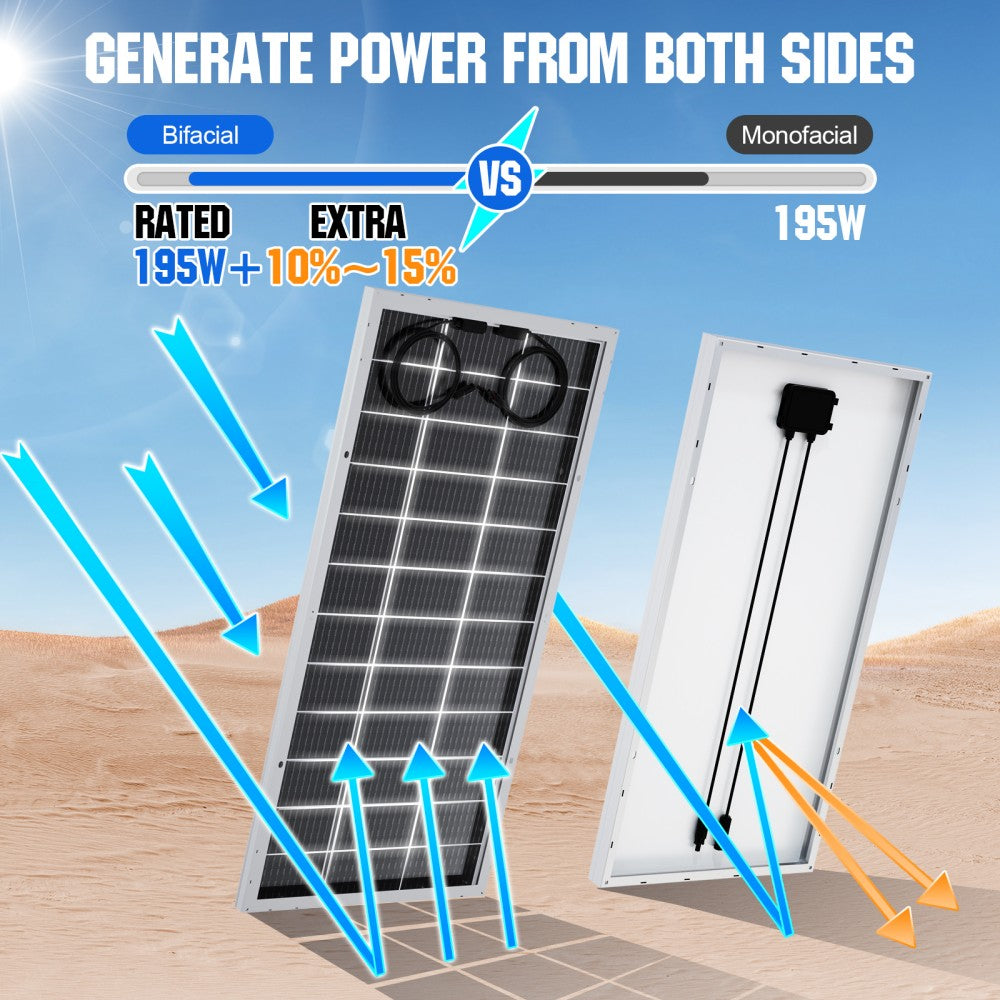

Bifacial 195W Monocrystalline Solar Panel
Rated Power: 195W | Solar Cell: Monocrystalline |
Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
Short circuit current: 10.5A | Maximum current: 9.85A |
Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: -40℃~ +85℃ |
Frame: Aluminum alloy frame | Weight: 20.48 lbs(9.29 kg) |
Size: 52.6x26.38x1.38in (1335*670*35mm) |
5000W 48V Split Phase Solar Hybrid Inverter Charger
Solar Charging Mode | |
PV Charging Current Range: 100A | MPPT Voltage Range: 120-450VDC |
Max Input Power: 5500W | Battery Voltage Range: 40-60VDC |
Invert Mode | |
Output Waveform: Pure Sine Wave | Rated Output Power: 5000W |
Rated Output: 110V/120VAC 50Hz/60Hz | Rated Battery Input Voltage: 48V |
Peak Power: 10000W |
48v 100Ah Rack LiFePO4 Lithium Battery
Battery Capacity: 50Ah | Battery Power: 5120Wh |
Rated Voltage: 51.2V | Voltage Range: 40~58V |
Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55℃ |
Disharge Temperature Range:﹣20-55℃ | Maximum Charge Voltage: 58.4V |
Battery Size: 22.55*17.13*5.63inch | Battery Weight: 97 lbs |
16.4 feet 12AWG Cables
Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
Length: 5 meters(16 ft) | Conductor: Tinned copper wire |
AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
Connector: MC4 | Weight: 0.742KG |
Z Mounting Brackets
4 pieces of Z shape solar panel brackets | 8 pieces of stainless steel nuts and cap bolts |
