Description

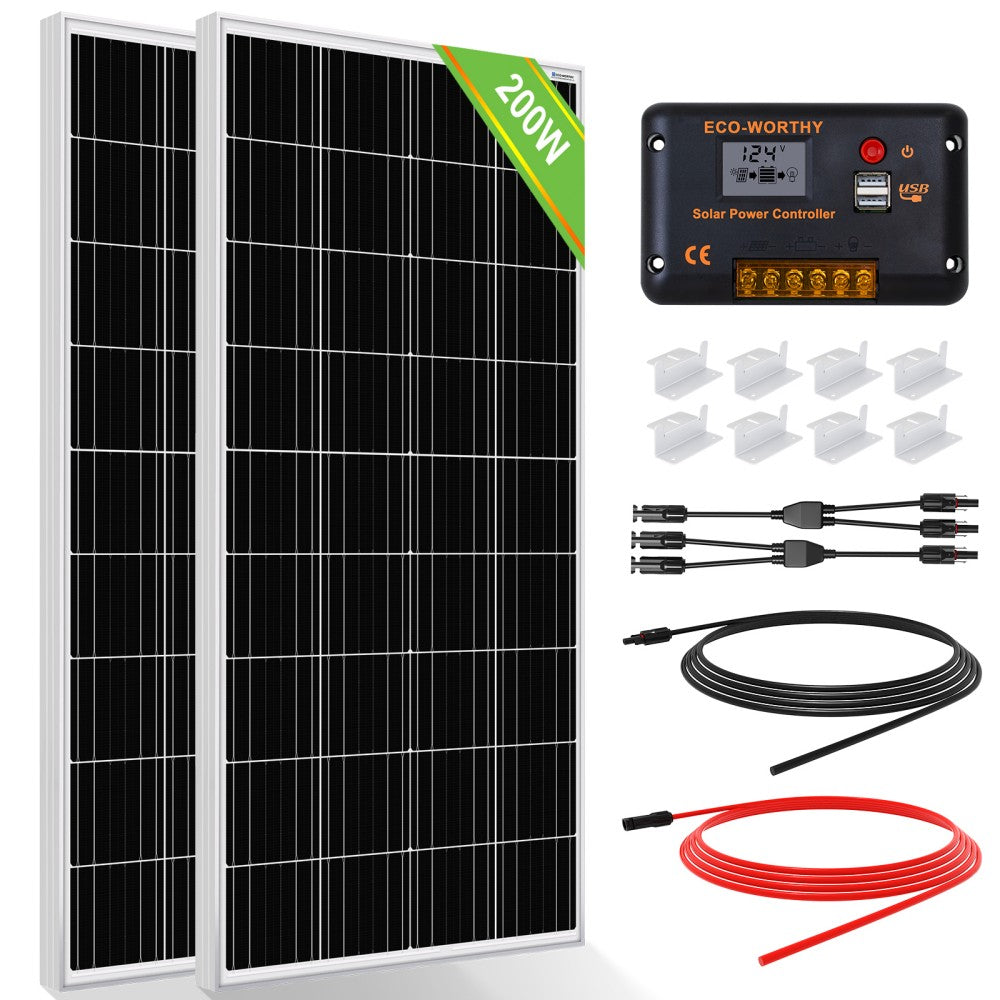

Package Includes
None(optional)
2x 100W Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
2x Z Mounting Bracket
1x Y MC4 Connector
1x 1.5M Tray Cable

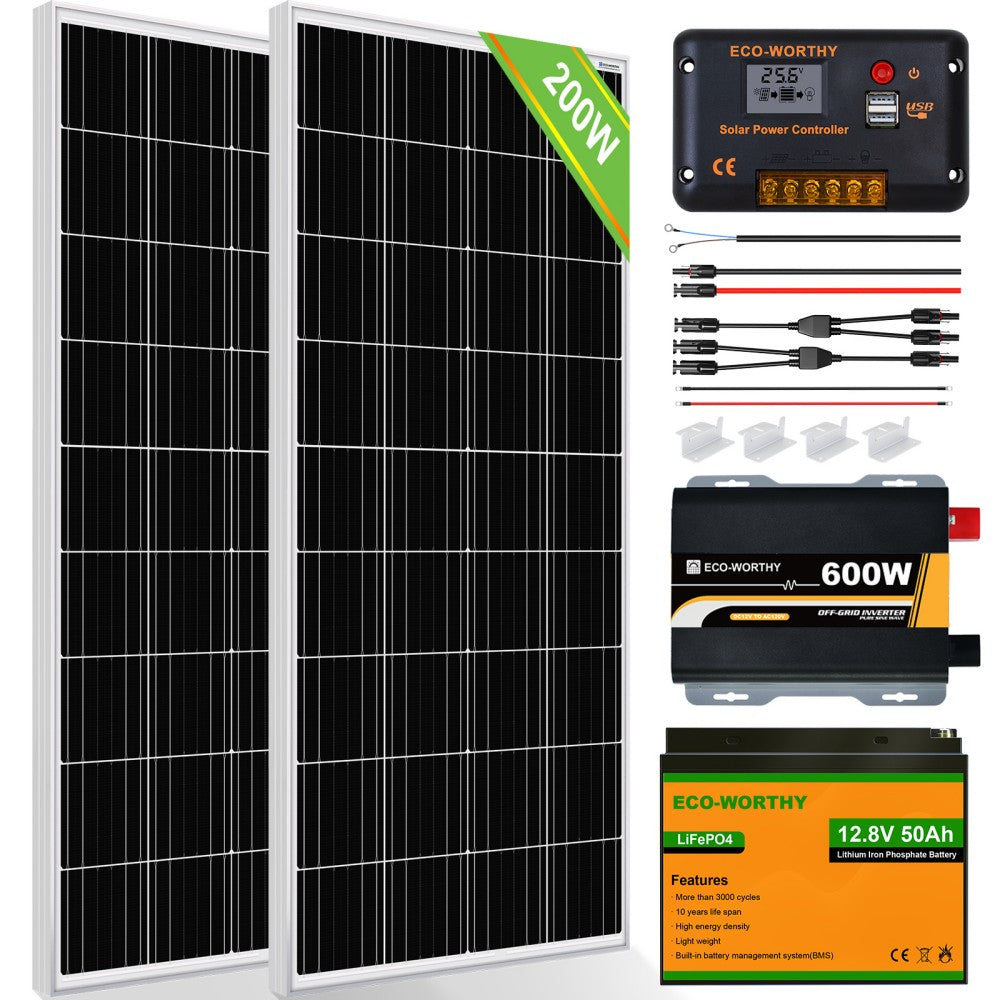

Complete Kit (optional)
with
1x 600W 12V-110V Pure Sine Wave Inverter
1x 50Ah 12V LiFePO4 Lithium Battery

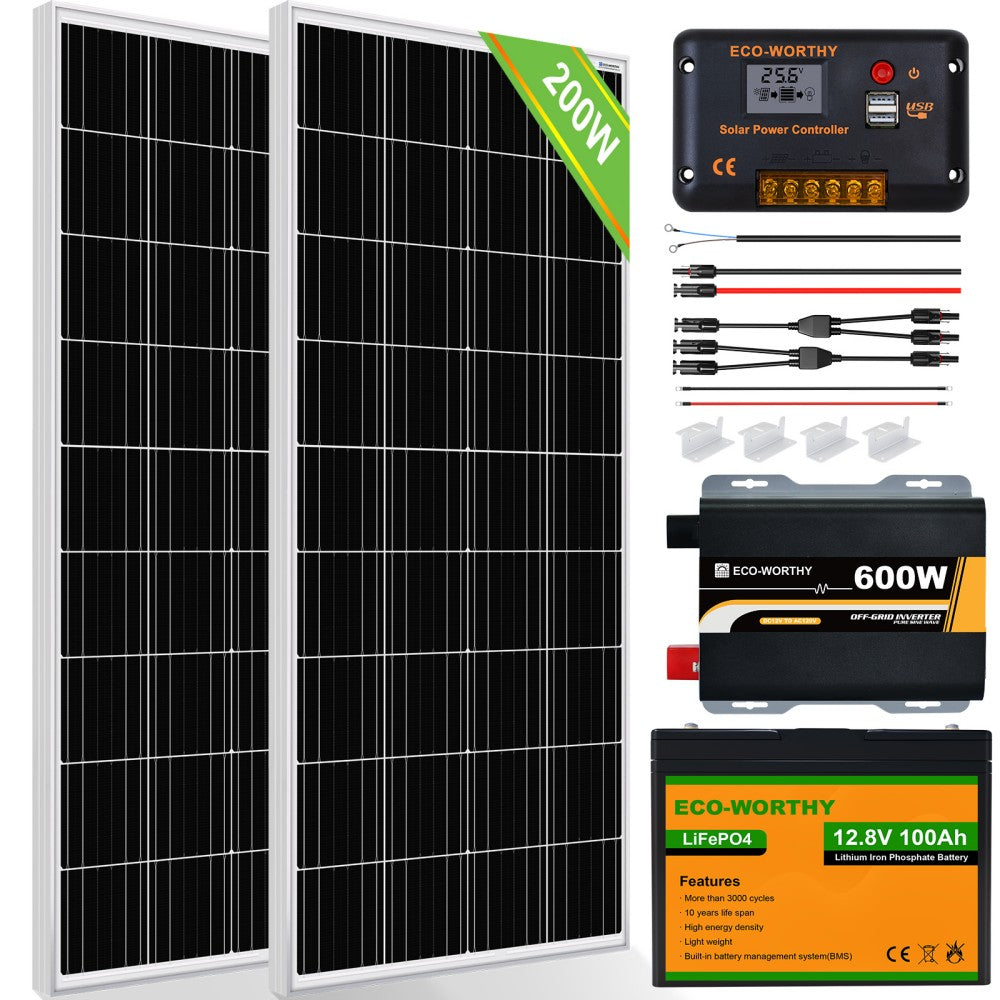

Complete Kit Pro (optional)
with
1x 600W 12V-110V Pure Sine Wave Inverter
1x 100Ah 12V LiFePO4 Lithium Battery
100W Monocrystalline Solar Panel
| Rated Power: 100W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 20.2V | Open Circuit Voltage(Voc): 24.5V |
| Short circuit current: 5.20A | Maximum current: 4.95A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range:－40℃～ +85℃ |
| Frame: Aluminum alloy frame | Length of extension cable: 90cm（2.95ft） |
| Size of extension cable: 4mm²（11AWG）/MC4 Connector | Weight: 11.46 lbs(5.20 kg) |
| Size: 1010mm*460mm*35mm |
30A PWM Solar Charge Controller
| Battery voltage: 12V/24V | Charging mode: PWM |
| Max Charge current: 30A | Discharge current: 30A |
| Max.PV Open-Circuit Voltage: <50V | USB Output: 5V/2A |
| Working Temperature: -20℃~60℃ | Weight: 150g |
| Size: 138*82*30mm |
600W 12V Off Grid Inverter
| Rated Output Power: 600W | Surge Output Power: 1000W |
| Rated Output Voltage: 120Vac ± 1% | Output Freq.: 60Hz ± 0.2Hz |
| Waveform: Pure Sine Wave | Total Harmonic Distortion: < 3% |
| Input PV Voltage Range: 10V-15V | Efficiency: > 85% |
| No Load Current Draw: 0.85A | Low Battery Alarm: 10.7V |
| Low Battery Shut-Down: 10V | Dimension (L x W x H): 12*6.77*2.95 inch |
| Weight: 2.5kg (5.5 lbs) |

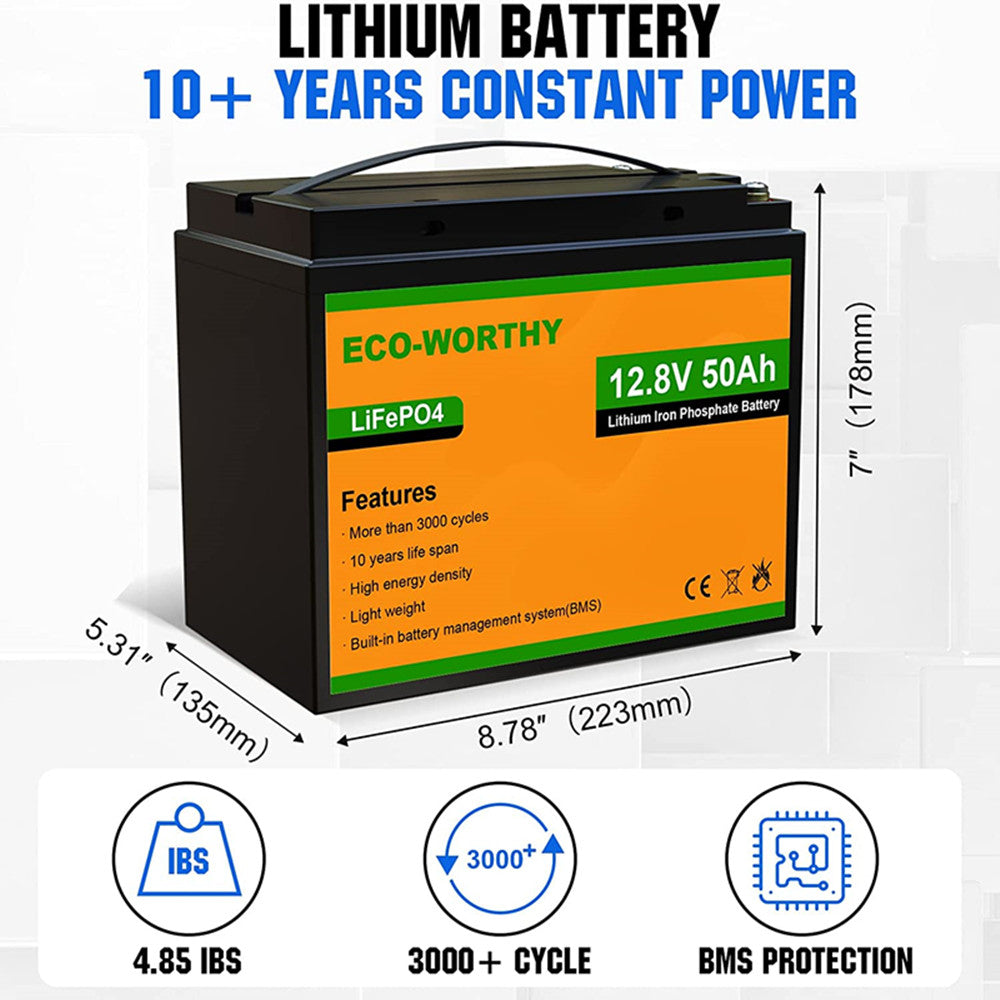

50Ah LiFePO4 Lithium Battery
| Battery Capacity: 50ah | Battery Power: 640Wh |
| Battery Voltage: 12.8V | Maximum Charge/ Discharge Current: 50A/50A |
| Charge Temperature Range: 0-55℃ | Disharge Temperature Range:﹣20－55℃ |
| Maximum Charge Voltage: 14.5V | Discharge Cut-Off Voltage: 10V |
| Screw size: M6 | Battery Size: 223*135*185mm（8.8*5.3*7.3inch） |
| Battery Weight: 4.82kg（10.62lb） |

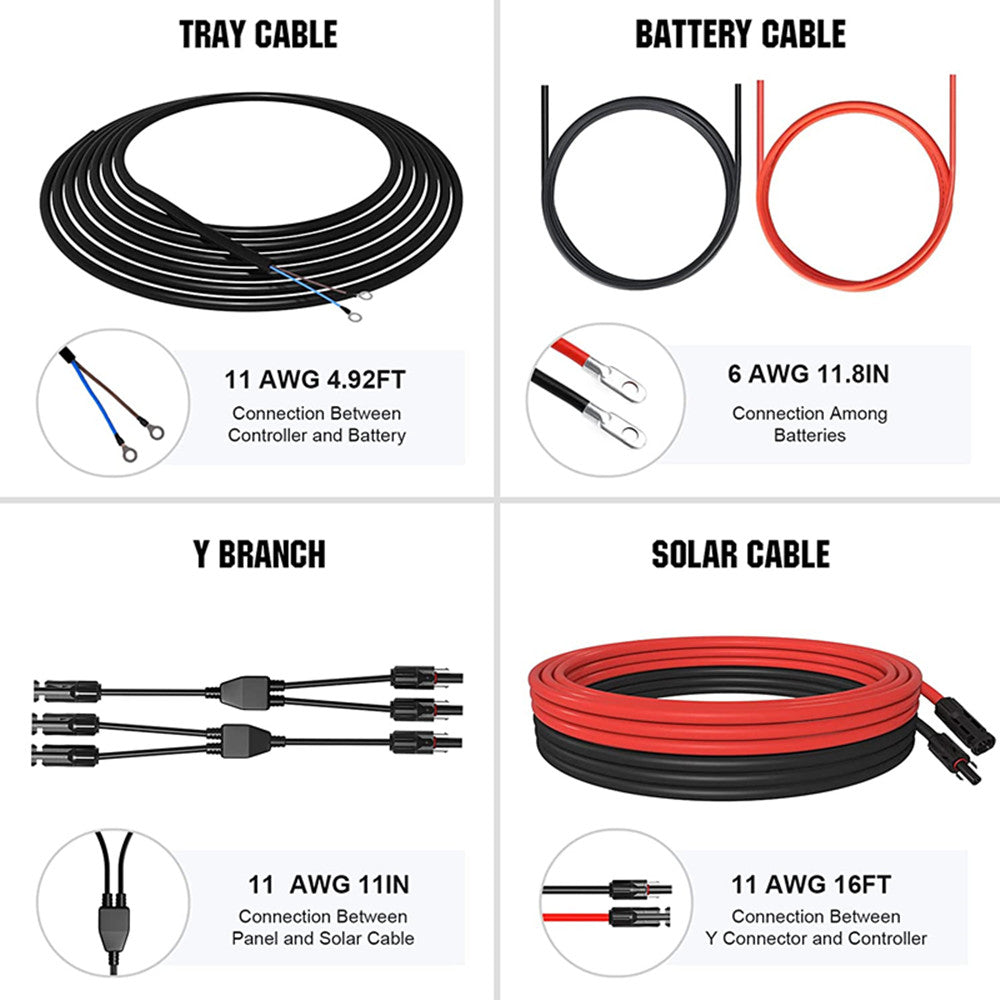

16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） | Conductor: Tinned copper wire |
| AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
Z Mounting Brackets
| 4 pieces of Z shape solar panel brackets | 8 pieces of stainless steel nuts and cap bolts |
Y Branch Cable MC4 Connectors
| Compatible with MC4 solar connector. | Easy installation for 2 solar panels connected in parallel. |
